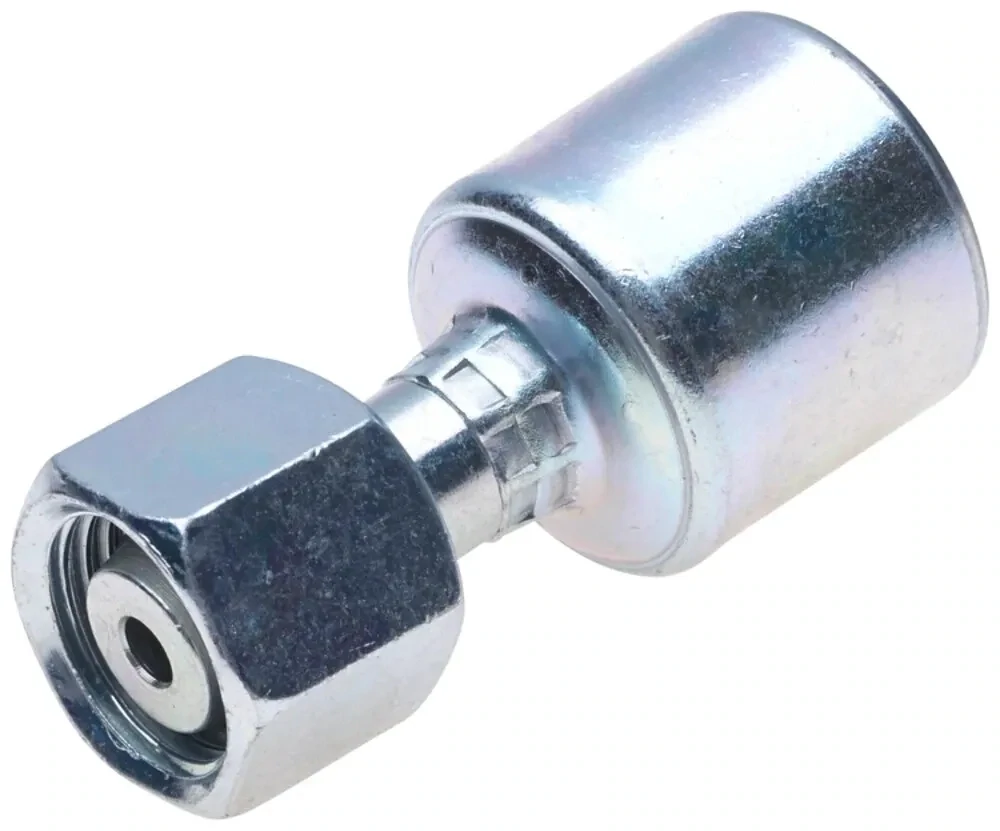

Metric Female DIN Light Series Hydraulic Fitting

The 10G-18FDLORX Metric Female DIN Light Series Hydraulic Fitting is a DIN Light Series metric female fitting designed for secure, leak-resistant hydraulic hose connections. Built to work with MegaCrimp® coupling technology, it uses the patented “C” insert to accommodate different hose constructions and wall thicknesses while distributing crimping forces evenly to form a concentric seal—helping simplify inventory by allowing one size to fit multiple hose ODs on both one- and two-wire hoses.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 10G-18FDLORX
• Product Type: Metric female DIN Light Series hydraulic fitting
• Coupling System: MegaCrimp®
• Seal Design: Patented “C” insert for even crimp-force distribution and concentric seal
• Thread Size: M26 x 1.5
• Thread Pitch: 1.5
• Tube OD: 18 mm
• Nut Hex Size: 32 mm
• Hose ID: 5/8 in
• Overall Length: 2.67 in
• Cutoff Length: 1.16 in

Ideal For

• Hydraulic hose assemblies needing a DIN Light Series metric female connection
• Applications requiring a consistent, leak-resistant crimp seal
• Shops standardizing on MegaCrimp® to simplify fitting and hose inventory
• Builds using 5/8" ID hose with M26 x 1.5 threads and 18 mm tube OD connections
