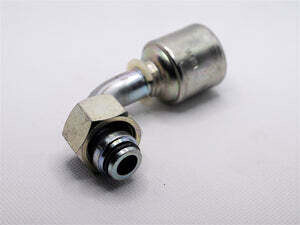

Metric Female DIN Light Series Hydraulic Fitting

The 6G-12FDLORX90 Metric Female DIN Light Series Hydraulic Fitting is a 90° DIN Light Series female hydraulic coupling designed for dependable, leak-resistant performance in crimped hose assemblies—especially where tighter routing requires a right-angle connection. Built with the MegaCrimp® system’s patented “C” insert, it helps create a concentric seal by evenly distributing crimping forces while accommodating different hose constructions and wall thicknesses, simplifying inventory by allowing one size to fit multiple hose ODs on one- and two-wire hoses.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 6G-12FDLORX90
• Brand / Series: MegaCrimp®
• Product Type: Metric Female DIN Light Series hydraulic fitting — 90°
• Hose ID: 3/8 in.
• Thread Size: M18 x 1.5
• Thread Pitch: 1.5
• Tube OD: 12 mm
• Nut Hex Size: 22 mm
• Overall Length: 2.37 in.
• Drop Length: 1.46 in.
• Cutoff Length: 1.27 in.
• Seal / Design Feature: Patented “C” insert for even crimp-force distribution and concentric sealing
• Compatibility Benefit: One size accommodates multiple hose ODs on one- and two-wire hoses

Ideal For

• DIN Light Series systems needing a 90° female metric connection for compact hose routing
• Crimped hose builds where leak control and consistent sealing are critical
• Shops reducing SKUs across varying hose constructions and wall thicknesses
• Equipment maintenance and repairs requiring reliable hydraulic connections
