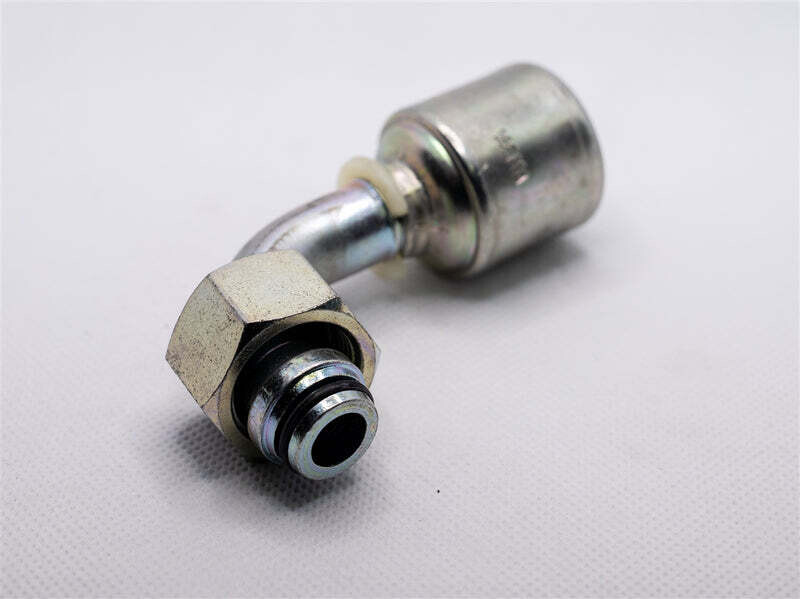

Metric Female DIN Light Series Hydraulic Fitting

The 4G-10FDLORX90 Metric Female DIN Light Series Hydraulic Fitting is a 90° MegaCrimp® hydraulic hose end designed for DIN Light Series (L) connections with a metric female swivel. Built around MegaCrimp’s patented “C” insert design, it helps distribute crimping forces evenly to form a concentric, leak-resistant seal—making it easier to standardize fittings while still handling different hose constructions (because your hose inventory already has enough personalities).

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 4G-10FDLORX90
• Brand / Series: MegaCrimp®
• Product Type: Metric female DIN Light Series hydraulic crimp fitting
• Angle: 90°
• Thread Size / Type: M16 x 1.5
• Thread Pitch: 1.5
• Nut Hex Size: 19 mm
• Tube OD (DIN Light): 10 mm
• Hose ID Compatibility: 1/4 in
• Overall Length: 2.27 in
• Cutoff Length: 1.24 in
• Drop Length: 1.44 in
• Seal / Crimp Design: Patented MegaCrimp® with internal “C” insert for compatibility across hose constructions and more even crimp force distribution for a concentric seal

Ideal For

• Building or repairing 1/4" hydraulic hoses using MegaCrimp® systems
• DIN Light Series metric applications needing 10 mm tube OD and M16 x 1.5 female threads
• Tight routing where a 90° hose end reduces stress and improves hose layout
• Shops aiming to reduce leaks—and the mysterious “why is the floor shiny?” moments
