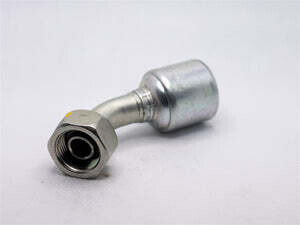

Metric Female DIN Light Series Hydraulic Fitting

The 8G-15FDLORX45 Metric Female DIN Light Series Hydraulic Fitting is a 45° MegaCrimp® hose coupling designed for secure, leak-resistant hydraulic connections while providing angled routing in tighter hose layouts. Built with the patented “C” insert, it helps create a concentric seal by evenly distributing crimp forces and supports use across different hose constructions and wall thicknesses, simplifying inventory for both one- and two-wire hose assemblies.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 8G-15FDLORX45
• Product Type: Hydraulic hose fitting / MegaCrimp® coupling
• Style: Metric female DIN Light Series
• Configuration: 45°
• Hose ID Compatibility: 1/2 in
• Tube OD: 15 mm
• Thread Size: M22 × 1.5
• Thread Pitch: 1.5
• Nut Hex Size: 27 mm
• Overall Length: 3.33 in
• Cutoff Length: 1.85 in
• Drop Length: 0.8 in
• Coupling Technology: Patented “C” insert for concentric, leak-proof crimp
• Compatibility: Works with multiple hose constructions and wall thicknesses, including one- and two-wire hoses

Ideal For

• Hydraulic systems needing a 45° metric female DIN Light Series connection
• Building 1/2" hose assemblies with 15 mm tube OD and M22×1.5 threads
• Applications where leak prevention and consistent crimp performance matter
• Hose routing situations where a 45° fitting improves clearance and reduces bend stress
