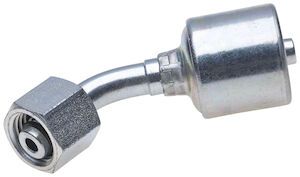

Metric Female DIN Light Series Hydraulic Fitting

The 4G-8FDLORX45 Metric Female DIN Light Series Hydraulic Fitting is a 45-degree Metric Female DIN Light Series hose fitting designed for clean routing and reliable sealing in hydraulic systems that use DIN metric tube connections. Built around the MegaCrimp® coupling design, it uses the patented “C” insert to help create an even, concentric crimp seal across different hose constructions and wall thicknesses—supporting leak-resistant performance while simplifying hose and fitting inventory.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 4G-8FDLORX45
• Product Type: Hydraulic hose fitting / crimp coupling
• Connection Style: Metric Female DIN Light Series
• Angle: 45°
• Thread Size: M14 x 1.5
• Thread Pitch: 1.5
• Tube OD: 8 mm (Tube OD 1: 8 mm)
• Hose ID: 1/4 in (Hose ID 1)
• Nut Hex Size: 19 mm
• Overall Length: 2.46 in
• Cutoff Length: 1.44 in
• Drop Length: 0.64 in
• Coupling System: MegaCrimp® with patented “C” insert for even crimp force distribution and leak-resistant sealing across multiple hose constructions

Ideal For

• Hydraulic hose assemblies needing a 45° Metric Female DIN Light Series connection for improved routing
• Applications requiring M14 x 1.5 threads with 8 mm tube OD compatibility
• Repairs and builds where consistent, leak-resistant crimp performance matters
• Shops standardizing on MegaCrimp® couplings to fit multiple hose constructions with fewer part numbers
