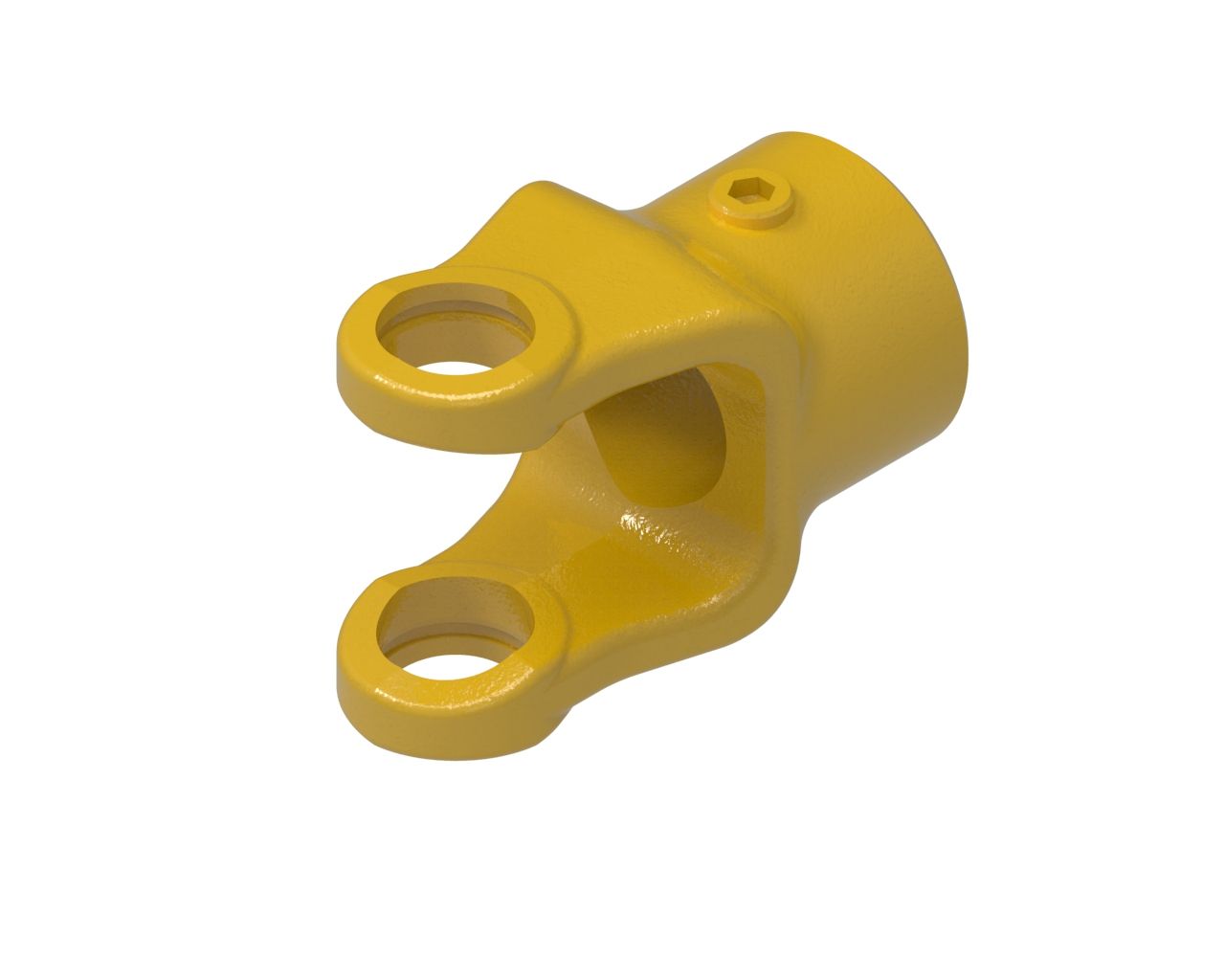

Metric Implement Pto Yoke, 1-Series X 3/4"

Metric Implement Pto Yoke, 1-Series X 3/4"

The A-BP212018451-A Metric Implement PTO Yoke is a Weasler implement yoke designed as the final connection point between a PTO driveline and the tractor-driven machine or implement. This yoke is 1-Series with a 3/4" round bore and keyway, using a set screw connection for secure mounting—ideal for common implement driveline setups requiring reliable power transfer.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: A-BP212018451-A
• Brand / Series: Weasler 1-Series
• Product Type: Implement PTO yoke
• Bore: 3/4" (0.75") (25.4 mm) — Round with keyway
• Connection Type: Set screw
• Keyway: 0.31" (8 mm)
• Set Screw Size: 3/8-16
• HP @ 540 RPM: 19 HP (14 kW)
• HP @ 1000 RPM: 29 HP (22 kW)
• Overall Length: 3.07" (78 mm)
• Height: 2.80" (71 mm)
• Width: 2.32" (59 mm)
• Weight: 0.84 lb (0 kg)
• Shipping Dimensions: 3.7" L × 2.8" H × 2.32" W (9 cm L × 7 cm H × 6 cm W)
• Shipping Volume: 24.04 in³ (394 cm³)
• Shipping Weight: 0.84 lb (0 kg)

Ideal For

• Replacing or building a PTO driveline needing a 1-Series implement yoke
• Implement connections requiring a 3/4" round bore with keyway
• Set-screw style installations where a 3/8-16 set screw is used
• Equipment setups operating within the listed power ratings (19 HP @ 540 / 29 HP @ 1000)
