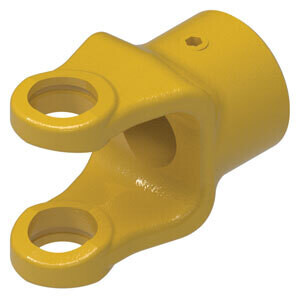

Metric Implement Pto Yoke, 3-Series X 1-3/8"

Metric Implement Pto Yoke, 3-Series X 1-3/8"

The 800-8311 Metric Implement PTO Yoke is a Weasler implement yoke designed to be the final connection between the PTO driveline and the implement, providing a precise, durable fit for demanding field use. This yoke features a 1-3/8" (35 mm) round bore with keyway and a set screw connection, making it a secure choice for properly keyed shafts where reliable retention and consistent power transfer are required.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 800-8311
• Brand: Weasler
• Product Type: Metric implement PTO yoke
• Series: 3-Series
• Bore 1 Size: 1.37" (1-3/8") (35 mm)
• Bore Type: Round with keyway
• Keyway Size: 0.31" (8 mm)
• Connection Type: Set screw
• Set Screw Size: 3/8-16
• HP Rating @ 540 RPM: 38 HP (28 kW)
• HP Rating @ 1000 RPM: 58 HP (43 kW)
• Overall Length: 3.62" (92 mm)
• Height: 3.48" (88 mm)
• Width: 2.17" (55 mm)
• Weight: 2.24 lb (1 kg)
• Shipping Dimensions: 4.43" L × 3.48" H × 2.17" W (11 cm L × 9 cm H × 6 cm W)
• Shipping Volume: 33.45 in³ (548 cm³)
• Shipping Weight: 2.24 lb (1 kg)

Ideal For

• PTO drivelines needing a 3-Series implement yoke with 1-3/8" (35 mm) bore
• Keyed shaft setups requiring a round bore with keyway for positive drive engagement
• Applications where a set screw retention method is preferred
• Replacing worn implement-end yokes to restore safe, consistent PTO power transfer
• Farm and equipment maintenance shops servicing common Weasler implement yoke configurations
