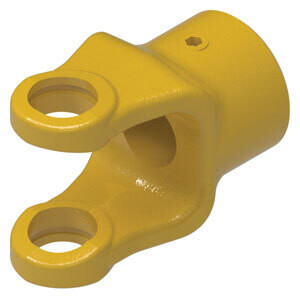

Metric Implement Pto Yoke, 3-Series X 63/64"

Metric Implement Pto Yoke, 3-Series X 63/64"

The 800-8325 Metric Implement PTO Yoke is a reliable final driveline connection that links a PTO drive shaft to the implement or machine being powered by the tractor. Built in a 3-Series configuration with a 63/64" (25 mm) round bore and keyway, it uses a set screw connection for secure retention and dependable power transfer in common 540 and 1000 RPM PTO applications.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 800-8325
• Product Type: Metric Implement PTO Yoke
• Series: 3-Series
• Bore: 0.98 in (25 mm) — Round with Keyway
• Keyway: 0.31 in (8 mm)
• Connection Type: Set Screw
• Set Screw Size: M10 × 12
• Rated Power @ 1000 RPM: 58 HP (43 kW)
• Rated Power @ 540 RPM: 38 HP (28 kW)
• Overall Length: 3.62 in (92 mm)
• Height: 3.48 in (88 mm)
• Width: 2.17 in (55 mm)
• Item Weight: 1.88 lb (1 kg)
• Shipping Dimensions: 4.43 in L × 3.48 in H × 2.17 in W (11 cm L × 9 cm H × 6 cm W)
• Shipping Volume: 33.45 in³ (548 cm³)
• Shipping Weight: 1.88 lb (1 kg)

Ideal For

• Replacing or building PTO drivelines needing a 3-Series implement yoke
• Applications requiring a 25 mm (63/64") round bore with keyway
• Secure, straightforward retention using a set-screw connection
• Implements operating at 540 or 1000 RPM within the listed HP ratings
• Farms and repair shops needing a dependable PTO-to-implement connection
