Metric Implement Pto Yoke, 4-Series X 1-1/2"

Metric Implement Pto Yoke, 4-Series X 1-1/2"

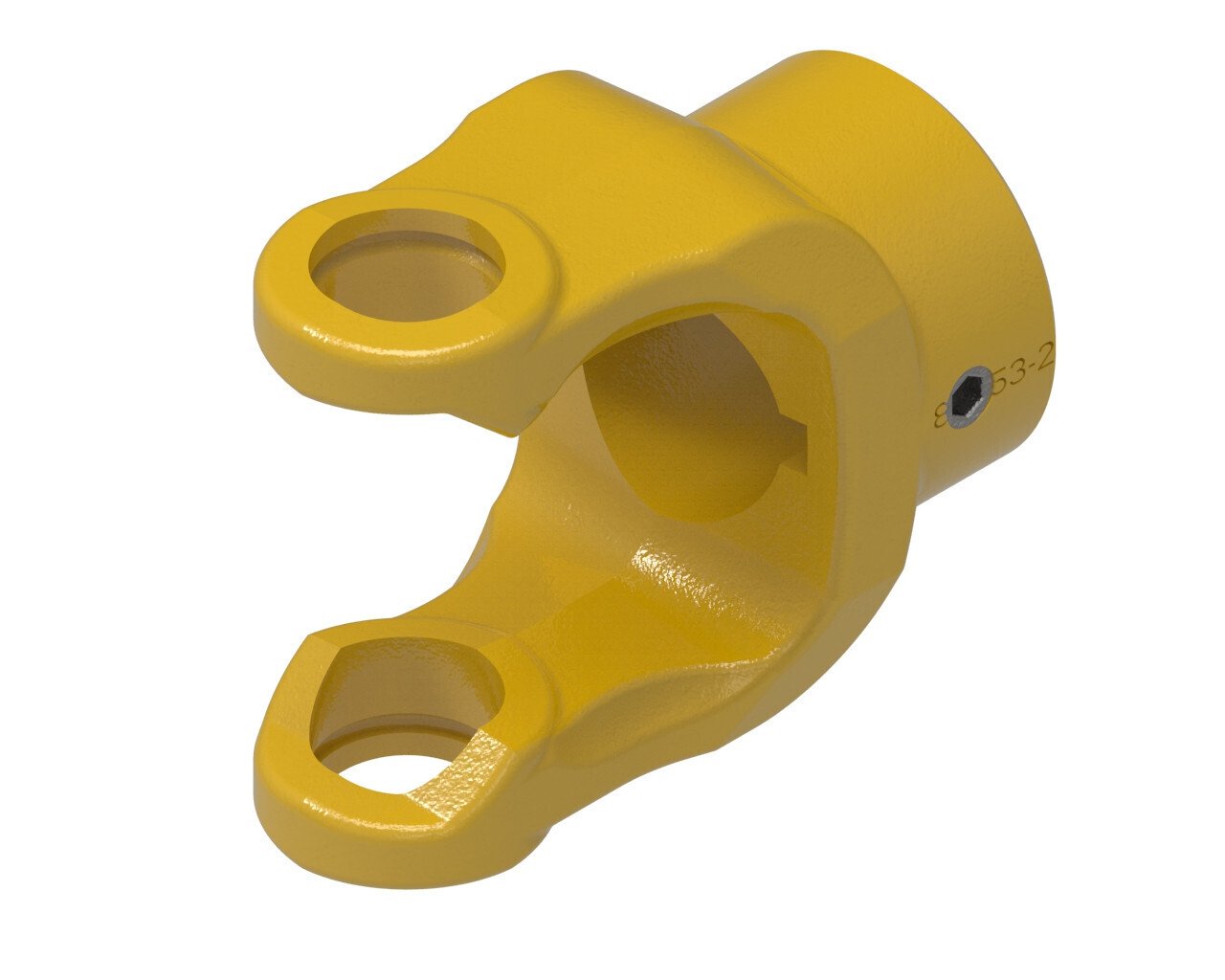

The 800-8424 Metric Implement PTO Yoke (4-Series x 1-1/2") is a PTO implement-end yoke that serves as the final connection between the PTO drive shaft and the machine/implement. This Weasler yoke features a 1-1/2" (38 mm) round bore with keyway and a setscrew connection, providing a secure, reliable fit for 4-series driveline applications.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 800-8424
• Series / Fitment: 4-Series
• Product Type: Metric implement PTO yoke
• Bore: 1.50 in (38 mm) — Round with keyway
• Connection: Setscrew
• Setscrew Size: 3/8-16
• Keyway: 0.37 in (9 mm)
• HP Rating @ 1000 RPM: 70 HP (52 kW)
• HP Rating @ 540 RPM: 45 HP (34 kW)
• Overall Length: 3.74 in (95 mm)
• Height: 3.82 in (97 mm)
• Width: 2.36 in (60 mm)
• Weight: 2.64 lb (1 kg)
• Shipping Dimensions: 4.6" L × 3.82" H × 2.36" W (12 cm L × 10 cm H × 6 cm W)
• Shipping Volume: 41.47 in³ (680 cm³)
• Shipping Weight: 2.64 lb (1 kg)

Ideal For

• PTO drivelines needing an implement-end yoke for machine/implement connection
• Applications requiring a 1-1/2" (38 mm) round bore with keyway
• Setups using a setscrew retention style (3/8-16)
• 4-series driveline systems rated around 45 HP @ 540 RPM or 70 HP @ 1000 RPM
• Replacing worn yokes while maintaining proper fit and power capacity
