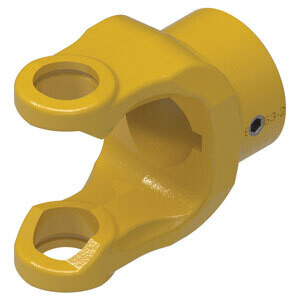

Metric Implement Pto Yoke, 4-Series X 1-1/4"

Metric Implement Pto Yoke, 4-Series X 1-1/4"

The A-BP212046764-A Metric Implement PTO Yoke is a heavy-duty final driveline connection designed to link a PTO drive shaft to an implement or machine, providing a secure, reliable interface for power transfer in demanding field conditions. Built in a 4-Series configuration with a 1-1/4" (32 mm) round bore with keyway, it uses a set screw connection for dependable retention and straightforward installation.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: A-BP212046764-A
• Product Type: Metric Implement PTO Yoke
• Series: 4-Series
• Bore: 1.25 in (32 mm) — Round with Keyway
• Keyway: 0.25 in (6 mm)
• Connection Type: Set Screw
• Set Screw Size: 3/8-16
• Rated Power @ 1000 RPM: 70 HP (52 kW)
• Rated Power @ 540 RPM: 45 HP (34 kW)
• Overall Length: 3.74 in (95 mm)
• Height: 3.82 in (97 mm)
• Width: 2.36 in (60 mm)
• Item Weight: 3.10 lb (1 kg)
• Shipping Dimensions: 4.6 in L × 3.82 in H × 2.36 in W (12 cm L × 10 cm H × 6 cm W)
• Shipping Volume: 41.47 in³ (680 cm³)
• Shipping Weight: 3.10 lb (1 kg)

Ideal For

• Replacing or building PTO drivelines needing a 4-Series implement yoke
• Applications requiring a 1-1/4" (32 mm) round bore with keyway
• Secure yoke retention using a set-screw style connection
• Implements running at 540 or 1000 RPM within the listed HP ratings
• Farms and shops needing a reliable final PTO-to-implement connection
