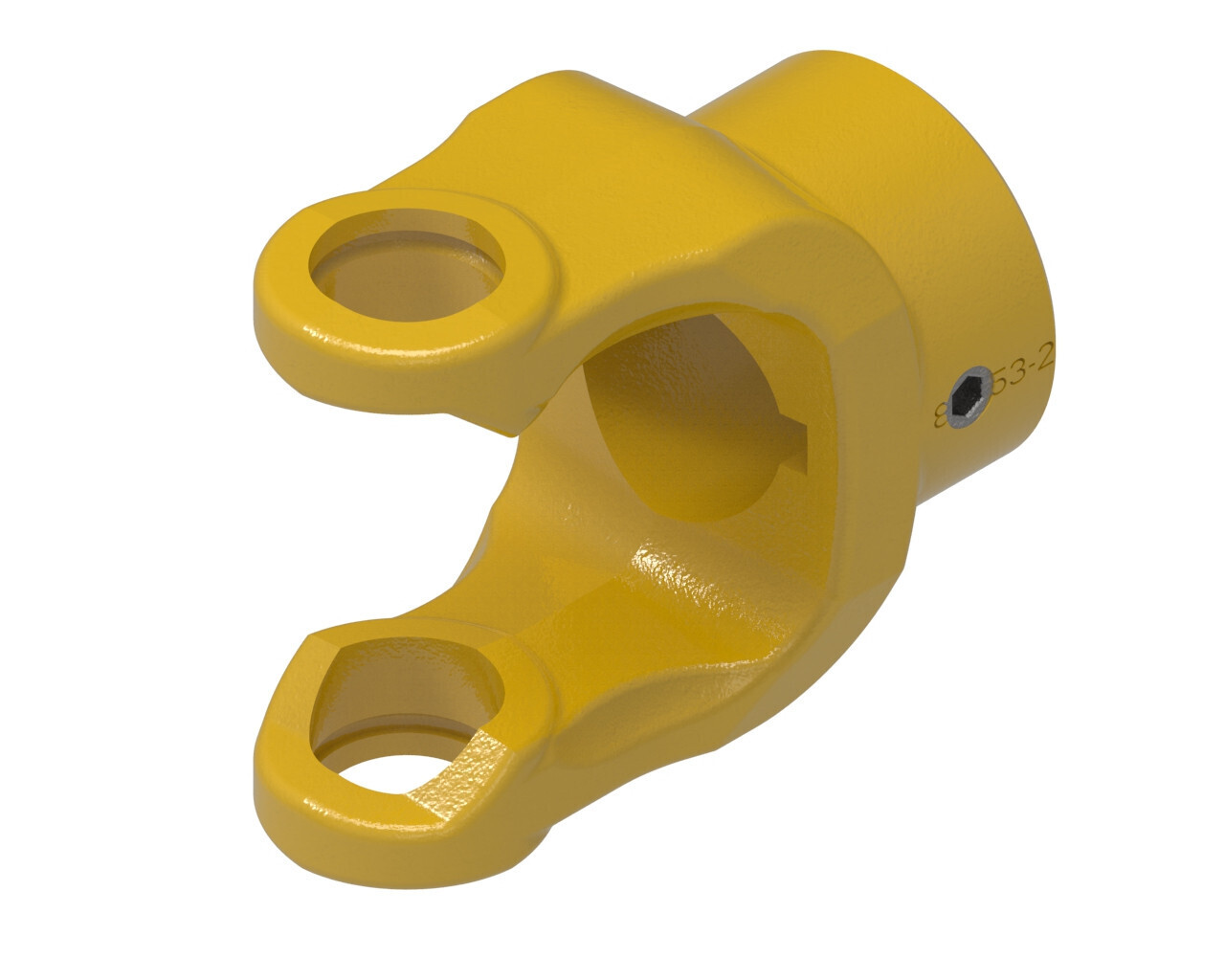

Metric Implement Pto Yoke, 4-Series X 1-3/8"

Metric Implement Pto Yoke, 4-Series X 1-3/8"

The A-BP212048751-A Metric Implement PTO Yoke is a heavy-duty 4-Series implement yoke designed to serve as the final connection between a PTO drive shaft and the attached implement. Built for reliable power transfer, it features a 1-3/8" (35 mm) round bore with keyway and a setscrew connection, making it well-suited for agricultural equipment operating at both 540 RPM and 1000 RPM PTO speeds.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: A-BP212048751-A
• Product Type: Metric implement PTO yoke
• Series: 4-Series
• Bore Size: 1.37 in / 35 mm
• Bore Type: Round with keyway
• Keyway Size: 0.31 in / 8 mm
• Connection Type: Setscrew
• Setscrew Size: 3/8-16
• Horsepower Rating @ 540 RPM: 45 HP / 34 kW
• Horsepower Rating @ 1000 RPM: 70 HP / 52 kW
• Overall Length: 3.74 in / 95 mm
• Height: 3.82 in / 97 mm
• Width: 2.36 in / 60 mm
• Weight: 2.24 lb / 1 kg
• Shipping Dimensions: 4.6" L × 3.82" H × 2.36" W (12 × 10 × 6 cm)
• Shipping Volume: 41.47 in³ / 680 cm³

Ideal For

• Agricultural implements requiring a 4-Series PTO implement yoke
• PTO systems using a 1-3/8" round bore with keyway
• Equipment operating at 540 RPM or 1000 RPM PTO speeds
• Farm machinery where a setscrew-style yoke connection is preferred
• Reliable power transmission between tractor PTO shafts and implements
