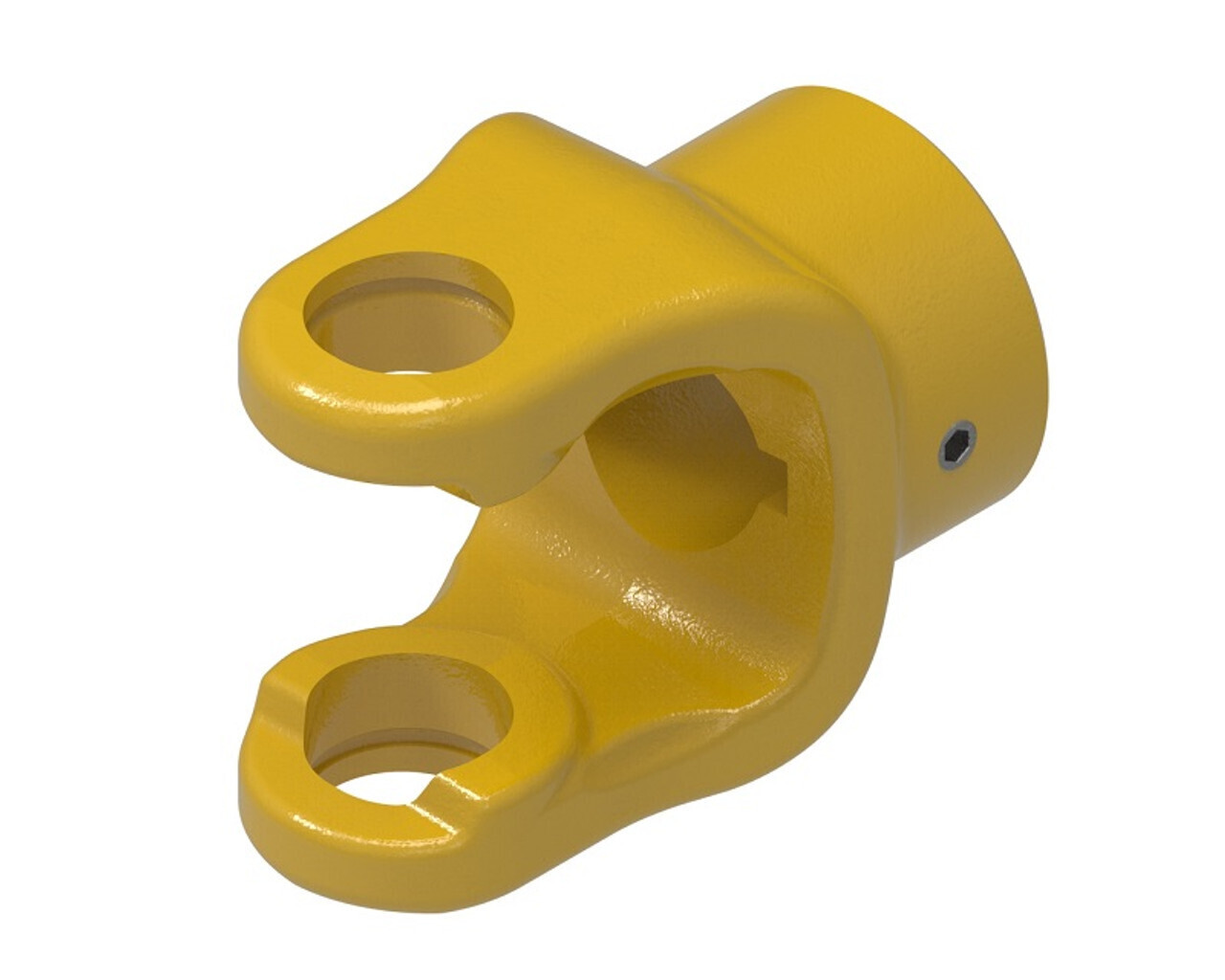

Metric Implement Pto Yoke, 5-Series X 1-1/2"

Metric Implement Pto Yoke, 5-Series X 1-1/2"

The 800-6524 Metric Implement PTO Yoke (5-Series x 1-1/2") is a final driveline connection component that mounts at the end of a PTO drive shaft to securely connect the shaft to a tractor-driven machine or implement. Designed with a round bore with keyway and a set screw connection, this yoke provides a strong, serviceable fit for common PTO applications while supporting up to 100 HP at 1000 RPM and 65 HP at 540 RPM.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 800-6524
• Product Type: Metric Implement PTO Yoke
• Series: 5-Series
• Bore Size: 1.50 in (38 mm)
• Bore Style: Round with keyway
• Connection Type: Set screw
• Keyway Size: 0.37 in (9 mm)
• Set Screw Size: 3/8-16
• HP Rating @ 1000 RPM: 100 HP (75 kW)
• HP Rating @ 540 RPM: 65 HP (48 kW)
• Overall Length: 3.85 in (98 mm)
• Height: 4.09 in (104 mm)
• Width: 2.76 in (70 mm)
• Weight: 3.78 lb (2 kg)
• Shipping Dimensions: 4.82" L × 4.09" H × 2.76" W (12 cm L × 10 cm H × 7 cm W)
• Shipping Volume: 54.41 in³ (892 cm³)
• Shipping Weight: 3.78 lb (2 kg)

Ideal For

• Replacing or upgrading the implement-end yoke on a PTO driveline
• Applications needing a 5-Series yoke with a 1-1/2" (38 mm) round bore
• Set-screw style driveline setups using a keyway for positive engagement
• Implements operating at 540 RPM or 1000 RPM PTO speeds within the listed HP ratings
