Metric Implement Pto Yoke, 6-Series X 1-3/4"

Metric Implement Pto Yoke, 6-Series X 1-3/4"

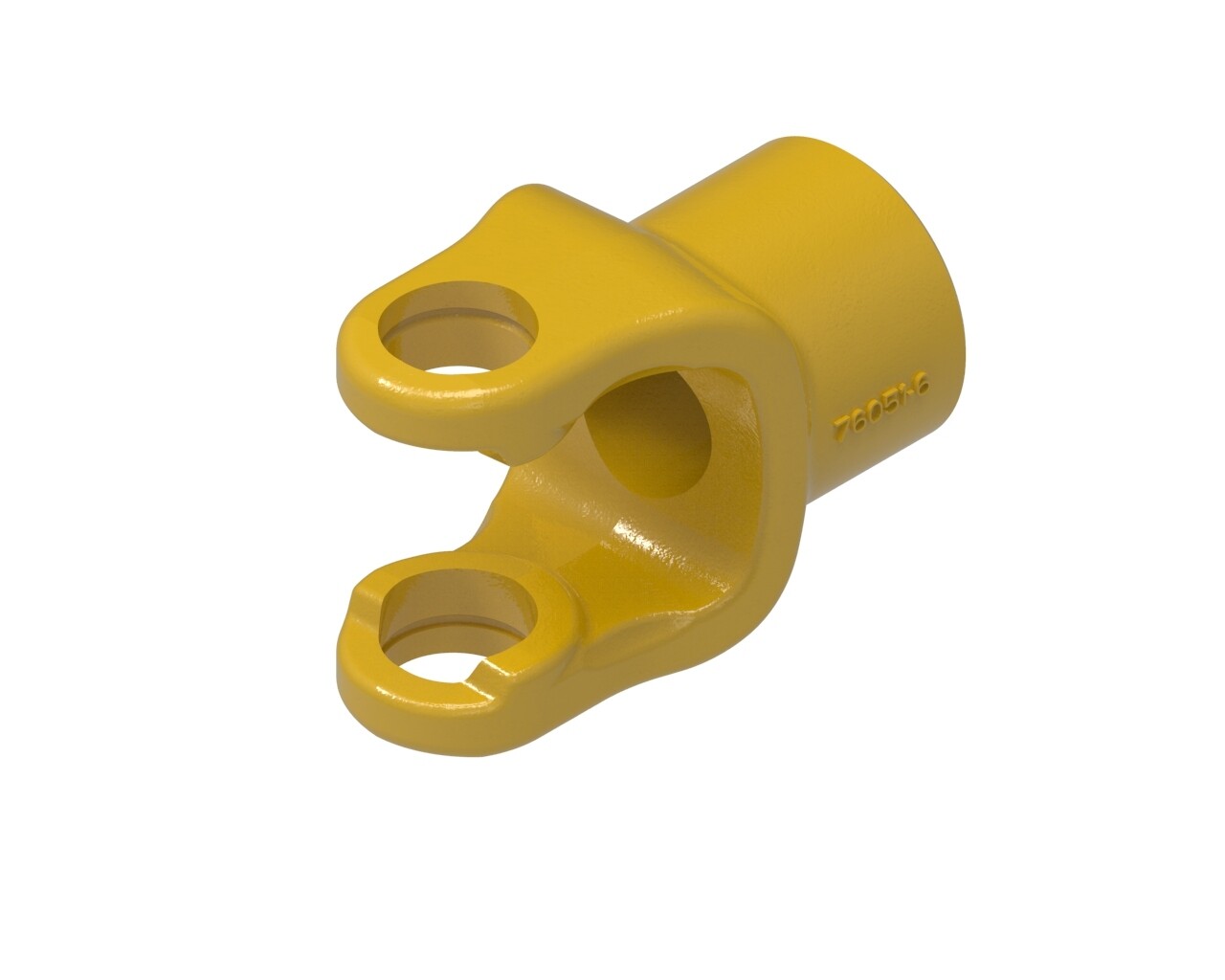

The 800-8628 Metric Implement PTO Yoke (6-Series x 1-3/4") is a PTO implement-end yoke that serves as the final connection between the PTO driveline and the machine/implement. This Weasler yoke features a 1-3/4" (44 mm) round bore with keyway and a setscrew connection, making it a strong, secure choice for higher-horsepower 6-series driveline applications.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 800-8628
• Series / Fitment: 6-Series
• Product Type: Metric implement PTO yoke
• Bore: 1.75 in (44 mm) — Round with keyway
• Connection: Setscrew
• Setscrew Size: 1/2-13
• Keyway: 0.37 in (9 mm)
• HP Rating @ 1000 RPM: 122 HP (91 kW)
• HP Rating @ 540 RPM: 79 HP (59 kW)
• Overall Length: 4.25 in (108 mm)
• Height: 4.49 in (114 mm)
• Width: 2.76 in (70 mm)
• Weight: 4.60 lb (2 kg)
• Shipping Dimensions: 5.18" L × 4.49" H × 2.76" W (13 cm L × 11 cm H × 7 cm W)
• Shipping Volume: 64.19 in³ (1052 cm³)
• Shipping Weight: 4.60 lb (2 kg)

Ideal For

• PTO drivelines needing an implement-end yoke for machine/implement connection
• Applications requiring a 1-3/4" (44 mm) round bore with keyway
• Setups using a setscrew retention style (1/2-13)
• 6-series driveline systems with higher horsepower demands at 540 or 1000 RPM
• Replacing worn yokes while maintaining proper fit and power capacity
