Metric Implement Pto Yoke, 7-Series X 44.5mm (1-3/4")

Metric Implement Pto Yoke, 7-Series X 44.5mm (1-3/4")

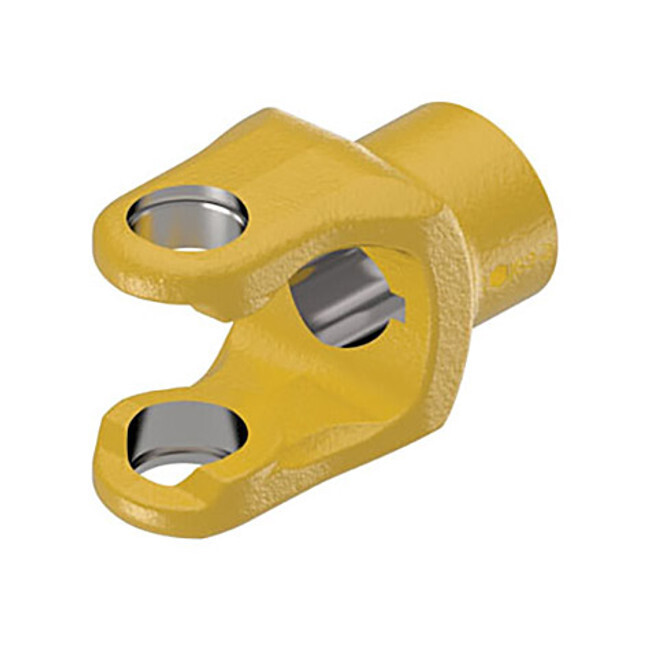

The 800-6728 Metric Implement PTO Yoke, 7-Series × 44.5mm (1-3/4") is a heavy-duty implement yoke that serves as the final connection between a PTO driveline and the attached machine or implement. Built for 7-Series applications, it features a round bore with keyway and a set-screw connection style for secure, serviceable installation, with power handling rated up to 158 HP @ 1000 RPM (or 103 HP @ 540 RPM).

Country of Origin: Varies by production batch

Key Features / Specifications

• Model / SKU: 800-6728
• Product Type: Metric implement PTO yoke
• Series: 7-Series
• Bore: 44.5 mm (1-3/4") (round bore with keyway)
• Connection Type: Set screw
• Set Screw Size: 3/8-16
• Keyway: 10 mm (0.38")
• Power Rating: 158 HP @ 1000 RPM / 103 HP @ 540 RPM
• Overall Length: 118 mm (4.63")
• Height: 114 mm (4.50")
• Width: 64 mm (2.50")
• Weight: 2 kg (5.46 lb)
• Shipping Dimensions: 14 cm L × 11 cm H × 6 cm W (5.57" L × 4.5" H × 2.5" W)
• Shipping Volume: 1027 cm³ (62.66 in³)
• Shipping Weight: 2 kg (5.46 lb)

Ideal For

• Replacing a worn implement-end yoke on 7-Series PTO drivelines
• Implement connections requiring a 1-3/4" (44.5mm) round bore with keyway
• Applications needing a secure set-screw retention style
• PTO setups running higher power loads up to 158 HP @ 1000 RPM
• Restoring dependable PTO power transfer between tractor and implement
