Metric Implement Yoke, 2400-Series X 1-3/8"

Metric Implement Yoke, 2400-Series X 1-3/8"

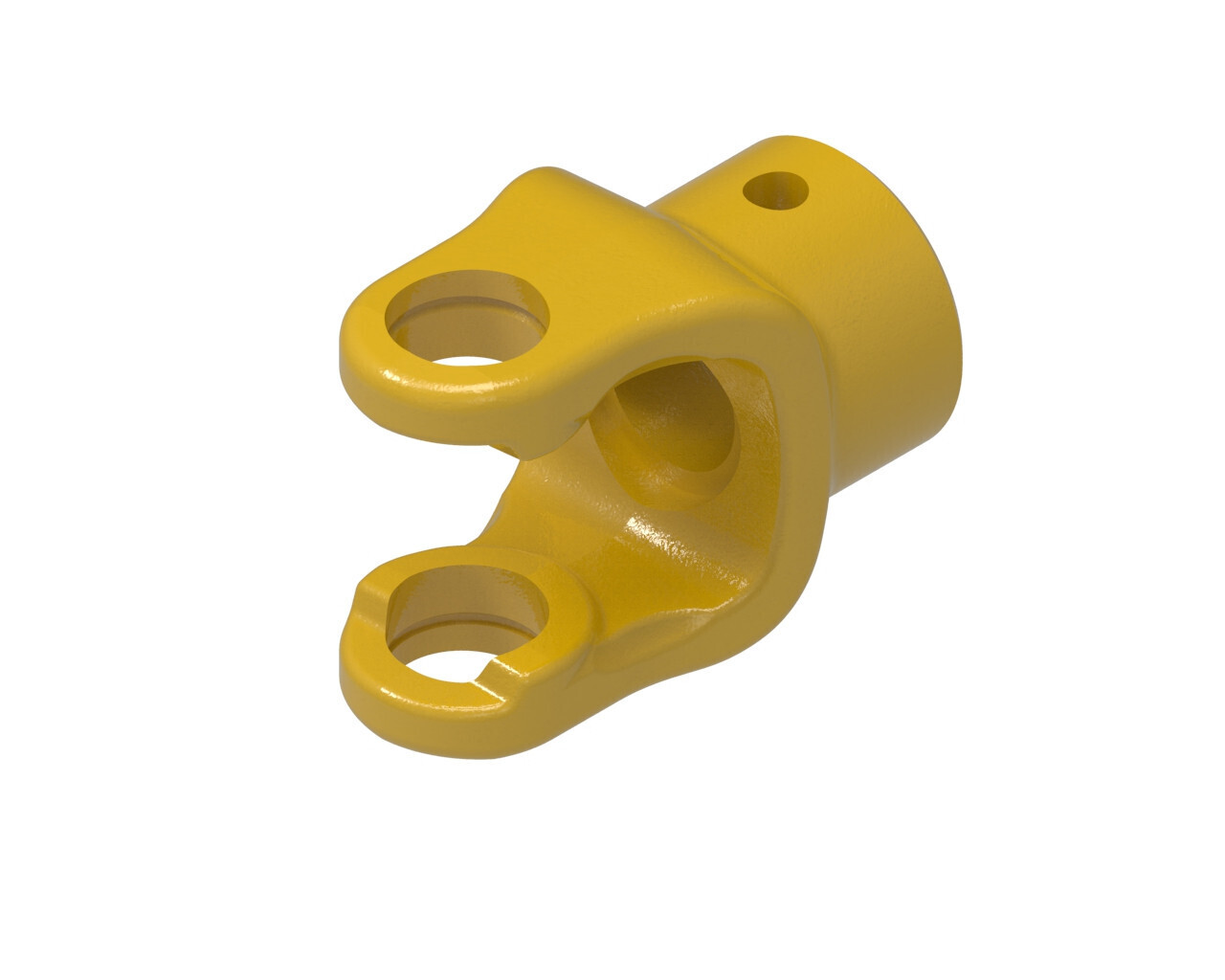

The 802-7611 Metric Implement Yoke is a Weasler 2400-Series shear pin yoke built for robust PTO driveline service with reliable, repeatable overload protection. Its shear pin (bolt) design disconnects the power source from the drivetrain during an overload event to help prevent damaging torque spikes and heat buildup—then gets you back up and running quickly by simply replacing the bolt. Engineered for a precise fit with a compact, efficient form, it delivers minimal maintenance and smooth operation when disengaged.

Country of Origin
Varies by production batch

Key Features / Specifications

• Part Number: 802-7611
• Brand: Weasler
• Product Type: Metric Implement Yoke / Shear Pin Yoke
• Series: 2400-Series
• Overload Protection: Shear pin (bolt) disconnects drivetrain on overload
• Bore 1: 1.37 in (35 mm) — Round
• Connection 1: Pin
• Pin Hole: 0.51 in (13 mm)
• Shear Bolt: (1) 1/2 Grade 2
• Rated Power @ 1000 RPM: 102 HP (76 kW)
• Rated Power @ 540 RPM: 66 HP (49 kW)
• Torque: 25600
• Overall Dimensions: 4.13 in L x 4.09 in H x 2.76 in W (105 x 104 x 70 mm)
• Weight: 4.24 lb (2 kg)
• Shipping Dimensions: 5.1 in L x 4.09 in H x 2.76 in W (13 x 10 x 7 cm)
• Shipping Volume: 57.57 in³ (943 cm³)
• Shipping Weight: 4.24 lb (2 kg)

Ideal For

• PTO driveline setups needing implement overload protection via a shear bolt
• Reducing risk of drivetrain damage from torque spikes during sudden overloads
• Operators wanting minimal-maintenance protection with quick reset by replacing the bolt
• Applications requiring a 2400-Series yoke with a 35 mm (1.37") round bore and pin connection
