Metric Implement Yoke, Walterscheid 2400-Series X 1-1/4"

Metric Implement Yoke, Walterscheid 2400-Series X 1-1/4"

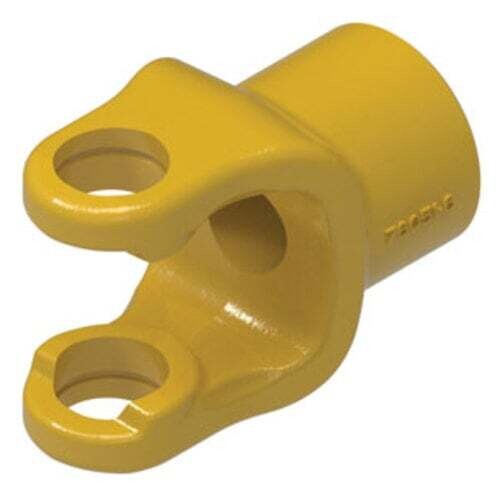

The 800-7610 Metric Implement Yoke (Walterscheid 2400-Series, 1-1/4") is the implement-end connector that links a PTO driveline to the machine or implement. Built for Walterscheid 2400-Series applications, it features a 1-1/4" round bore with keyway and a set-screw connection for secure mounting, with horsepower ratings suitable for many mid-duty PTO-driven implements.

Country of Origin: Varies by production batch

Key Features / Specifications

• Model / Part Number: 800-7610
• Series / Fitment: Walterscheid 2400-Series
• Product Type: PTO implement yoke
• Bore / Fit: 1.25" (32 mm) round bore with keyway
• Connection Type: Set screw
• Keyway Size: 0.25" (6 mm)
• Set Screw Size: 3/8-16
• Power Rating:
  • 102 HP @ 1000 RPM (76 kW)
  • 66 HP @ 540 RPM (49 kW)

Dimensions / Measurements

• Length: 4.40 in (112 mm)
• Height: 4.09 in (104 mm)
• Width: 2.76 in (70 mm)
• Weight: 3.32 lb (2 kg)
• Shipping Dimensions: 5.37" L × 4.09" H × 2.76" W (14 cm × 10 cm × 7 cm)
• Shipping Volume: 60.62 in³ (993 cm³)
• Shipping Weight: 3.32 lb (2 kg)

Ideal For

• Replacing the implement-end yoke on Walterscheid 2400-Series PTO drivelines
• PTO implements requiring a 1-1/4" round bore with keyway connection
• Applications needing a simple, secure set-screw mounted implement yoke
• Mid-duty PTO setups operating within the listed HP ratings
