Metric Implement Yoke, Walterscheid 2400-Series X 1-3/8"

Metric Implement Yoke, Walterscheid 2400-Series X 1-3/8"

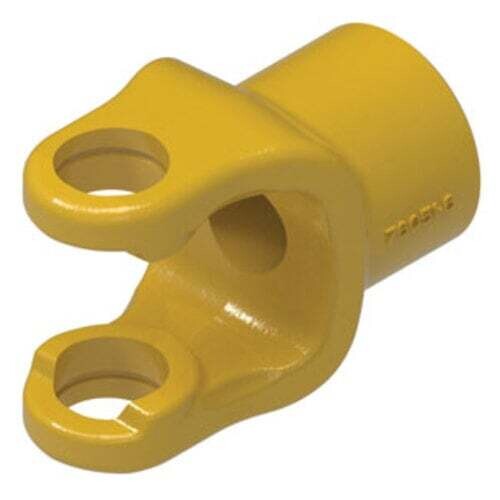

The 800-7611 Metric Implement Yoke (Walterscheid 2400-Series x 1-3/8") is a PTO implement-end yoke that serves as the final connection between the PTO drive shaft and the machine/implement. This Weasler yoke features a 1-3/8" (35 mm) round bore with keyway and a setscrew connection, offering a secure, dependable fit for a wide range of implement driveline applications.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 800-7611
• Series / Fitment: Walterscheid 2400-Series
• Product Type: Metric implement yoke
• Bore: 1.37 in (35 mm) — Round with keyway
• Connection: Setscrew
• Setscrew Size: 3/8-16
• Keyway: 0.31 in (8 mm)
• HP Rating @ 1000 RPM: 102 HP (76 kW)
• HP Rating @ 540 RPM: 66 HP (49 kW)
• Overall Length: 4.40 in (112 mm)
• Height: 4.09 in (104 mm)
• Width: 2.76 in (70 mm)
• Weight: 3.32 lb (2 kg)
• Shipping Dimensions: 5.37" L × 4.09" H × 2.76" W (14 cm L × 10 cm H × 7 cm W)
• Shipping Volume: 60.62 in³ (993 cm³)
• Shipping Weight: 3.32 lb (2 kg)

Ideal For

• PTO drive shafts needing an implement-end yoke connection to a machine/implement
• Applications requiring a 1-3/8" (35 mm) round bore with keyway
• Setups that use a setscrew retention style (3/8-16)
• Drivelines in the Walterscheid 2400-Series range needing a direct-fit implement yoke
• Operators wanting a reliable PTO-to-implement connection with known HP ratings at 540 and 1000 RPM
