Metric Insert Bearing, 45MM

Metric Insert Bearing, 45MM X 85MM

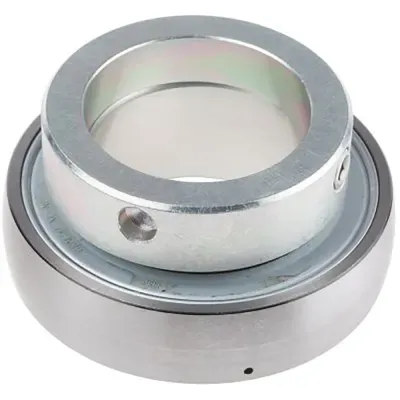

The GRAE45NPPB Metric Insert Bearing (45 mm × 85 mm) is a sealed insert bearing designed for reliable shaft support in rotating equipment where fast, secure mounting is needed. With a cylindrical 45 mm bore, eccentric collar locking, and contact seals, it’s a solid choice for agricultural and industrial applications that benefit from contamination resistance and dependable load capacity.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: GRAE45NPPB
• Series: GRAE..-NPP-B
• Product Type: Metric insert bearing
• Bore Diameter: 45 mm
• Bore Type: Cylindrical
• Locking Device: Eccentric collar
• Seal Type: Contact seal
• Finish / Coating: Uncoated
• Outside Diameter: 3.3465 in (85 mm)
• Inner Ring Width: 1.1875 in
• Outer Ring Width: 0.8661 in
• Operating Temperature Range: -20 to +120 °C
• Radial Dynamic Load Capacity: 32,500 N
• Radial Static Load Capacity: 20,400 N
• Weight: 1.355–1.72 lb

Ideal For

• Bearing replacements needing a 45 mm bore insert with eccentric collar locking
• Agricultural and industrial equipment where sealed bearings help handle dust and debris
• Conveyors, augers, and rotating shafts needing a dependable insert-style bearing
• Applications requiring strong load handling within the listed dynamic/static ratings
• Equipment running across a wide operating temperature range (-20 to +120 °C)
