Metric Insert Bearing, 50MM

Description

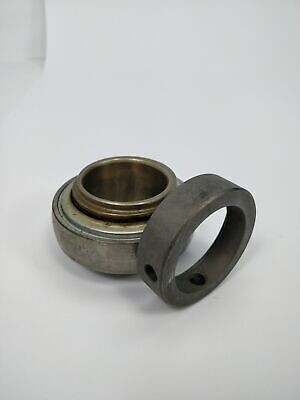

• The GC-KRRB wide inner ring bearings are relubricatable with spherical OD and shroud seals.The metal shroud maintains tight seal contact against the inner ring and shields the rubber seals form damages due to dirt fiber wrap. The concentric collar is locked to the shaft by two setscrews, located 120° apart, which are mated with threaded holes in the collar and drilled holes in the bearing inner ring.The extra wide disign provides additional shaft support and extra large grease capacity.
• Specifications

  Bearing Design	Non-Expansion
  Bore Type	Round Bore
  Duty	Standard-Duty
  O.D.	90 mm
  Outer Ring Width	23 mm
  Enclosure	Double Sealed
  Static Load Rating [Max]	4500 lbf
  Seal Type	Contact Seals
  Inch/Metric	Metric Bore
  Material	Steel
