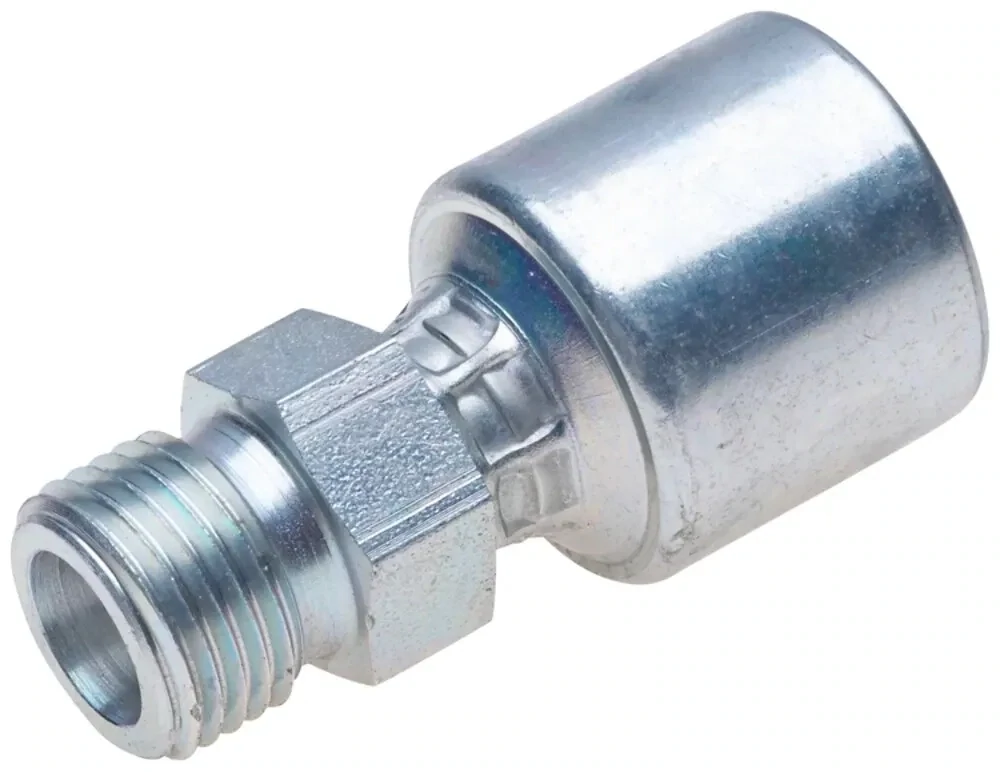

Metric Male DIN Heavy Series Hydraulic Fitting

The 4G-10MDH Metric Male DIN Heavy Series Hydraulic Fitting is a MegaCrimp® crimp coupling built for DIN Heavy Series metric male hydraulic connections where strength and leak resistance matter. Featuring MegaCrimp®’s patented internal “C” insert, it helps evenly distribute crimping forces to form a concentric, leak-proof seal while accommodating different hose constructions and wall thicknesses—helping simplify inventory across common one- and two-wire hose builds.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 4G-10MDH
• Product Type: Hydraulic hose fitting / MegaCrimp® coupling
• Connection Standard: Metric Male DIN Heavy Series
• Thread Size: M18 x 1.5
• Thread Pitch: 1.5
• Tube OD: 10 mm
• Hose ID: 1/4 in
• Overall Length: 2.07 in
• Cutoff Length: 1.04 in
• Stem Hex Size: 19 mm
• Seal Design: Patented MegaCrimp® with internal “C” insert for even crimp force distribution and a concentric, leak-resistant seal
• Hose Compatibility: Designed to work across multiple hose constructions and wall thicknesses (including one- and two-wire hoses)

Ideal For

• Hydraulic hose assemblies needing a DIN Heavy Series metric male connection
• Equipment using M18 x 1.5 threads with 10 mm tube OD DIN specifications
• Applications where leak resistance and consistent crimp performance are critical
• Maintenance shops aiming to reduce fitting inventory across varying hose ODs
• Industrial, agricultural, and mobile hydraulic repairs using 1/4" ID hose
