Metric Male DIN Heavy Series Hydraulic Fitting

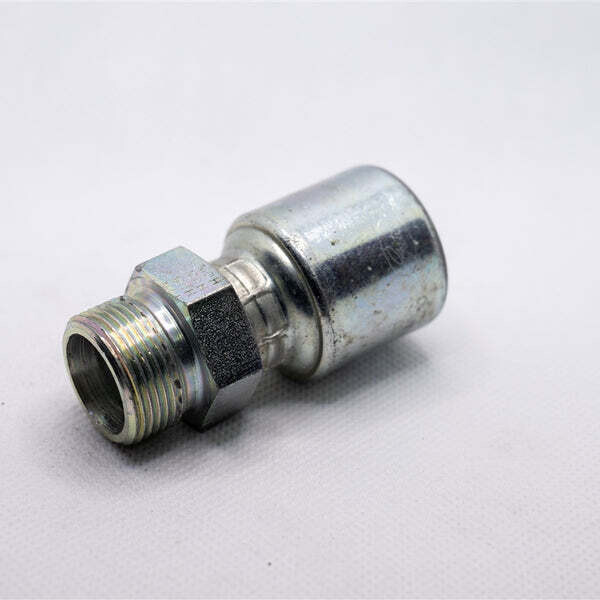

The 4G-8MDH Metric Male DIN Heavy Series Hydraulic Fitting is a MegaCrimp® hose coupling engineered to provide a leak-proof, concentric crimp seal using its patented “C” insert, which helps distribute crimping forces evenly across different hose constructions and wall thicknesses. This design can simplify inventory by allowing one coupling size to accommodate multiple hose ODs on one- and two-wire hoses, while the metric male DIN heavy series connection supports durable hydraulic hookups in demanding systems.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 4G-8MDH
• Brand / Series: MegaCrimp®
• Product Type: Hydraulic hose coupling / crimp fitting
• Connection Type: Metric Male DIN — Heavy Series
• Thread Size 1: M16 x 1.5
• Thread Pitch: 1.5
• Tube OD: 8 mm
• Hose ID 1: 1/4 in
• Overall Length: 2.09 in
• Cutoff Length: 1.06 in
• Stem Hex Size: 17 mm
• Seal Design: Patented “C” insert for even crimp-force distribution and concentric sealing
• Compatibility Advantage: One size can fit multiple hose ODs across different constructions and wall thicknesses (one- and two-wire hoses)

Ideal For

• Hydraulic hose assemblies needing a Metric Male DIN Heavy Series connection
• Applications where a leak-resistant crimp seal is critical
• Shops looking to reduce coupling inventory while covering multiple hose OD ranges
• One- and two-wire hose builds requiring consistent, repeatable crimp performance
