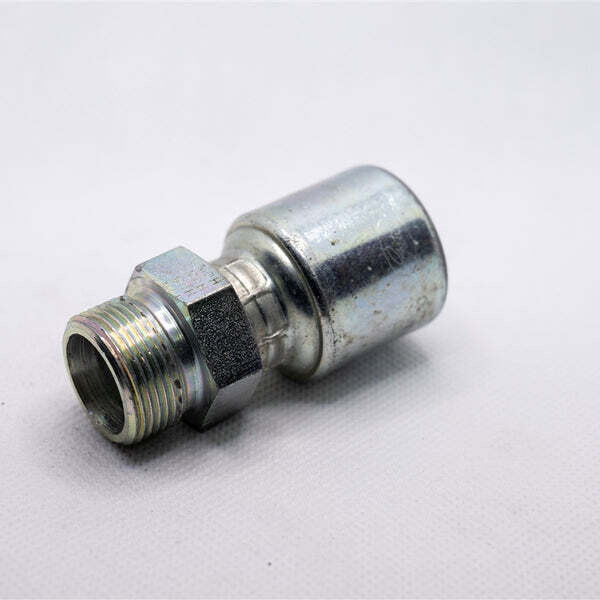

Metric Male DIN Light Series Hydraulic Fitting

The 4G-8MDL Metric Male DIN Light Series Hydraulic Fitting is a metric male DIN Light Series crimp coupling designed for reliable, leak-resistant hydraulic hose assemblies. Built around the MegaCrimp® design, it uses an internal “C” insert that helps accommodate different hose constructions and wall thicknesses while distributing crimping forces evenly to form a concentric seal—supporting simplified inventory across varying hose ODs on one- and two-wire hoses.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 4G-8MDL
• Product Type: Hydraulic fitting / crimp coupling
• End Style: Metric male DIN Light Series
• Thread Size 1: M14 x 1.5
• Thread Pitch: 1.5
• Tube OD: 8 mm
• Hose ID (Hose 1): 1/4"
• Overall Length: 1.97 in
• Cutoff Length: 0.94 in
• Stem Hex Size: 17 mm
• Seal / Crimp Design: MegaCrimp® “C” insert supports varied hose constructions and helps form an even, concentric crimp seal
• Hose Compatibility Note: Designed to accommodate different hose ODs on one- and two-wire hoses (per MegaCrimp coupling design)

Ideal For

• Hydraulic hose builds requiring a metric male DIN Light Series connection
• Equipment using M14 x 1.5 fittings with 8 mm tube OD specs
• Repairs and assemblies using 1/4" hose ID
• Installations needing a dependable crimp seal across varied hose constructions
• Service shops wanting fewer coupling SKUs via MegaCrimp multi-OD fit
