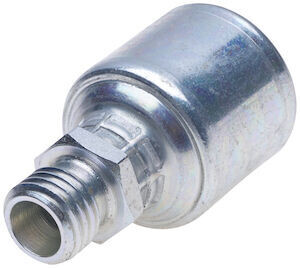

Metric Male DIN Light Series Hydraulic Fitting

The 4G-10MDL Metric Male DIN Light Series Hydraulic Fitting is a MegaCrimp® hose coupling designed for reliable, leak-resistant hydraulic connections using a metric male DIN Light Series thread. Its patented MegaCrimp® design uses an internal “C” insert to support multiple hose constructions and wall thicknesses, distributing crimp forces evenly to form a concentric seal on both one- and two-wire hoses—helping simplify inventory while maintaining dependable performance.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 4G-10MDL
• Product Type: Hydraulic hose coupling / crimp fitting
• End Type: Metric male DIN Light Series
• Hose ID (Hose End): 1/4 in
• Thread Size: M16 × 1.5
• Thread Pitch: 1.5
• Tube OD (DIN): 10 mm
• Overall Length: 2.01 in
• Cutoff Length: 0.98 in
• Stem Hex Size: 17 mm
• Coupling System: MegaCrimp®
• Seal Design: Patented “C” insert for even crimp-force distribution and a concentric seal
• Compatibility Advantage: One size accommodates multiple hose constructions / wall thicknesses
• Hose Construction Support: Works on one- and two-wire hoses

Ideal For

• Hydraulic hose assemblies needing a DIN Light Series metric male connection
• Builds using 1/4" ID hose with M16×1.5 thread compatibility
• Systems where a consistent, leak-resistant crimp seal is critical
• Shops aiming to simplify fitting inventory across varying hose constructions
• General hydraulic repairs and assemblies using 10 mm tube OD DIN connections
