Metric Pto Yoke, Series 2400 w/Over-Running Clutch

Metric Pto Yoke, Series 2400 w/Over-Running Clutch

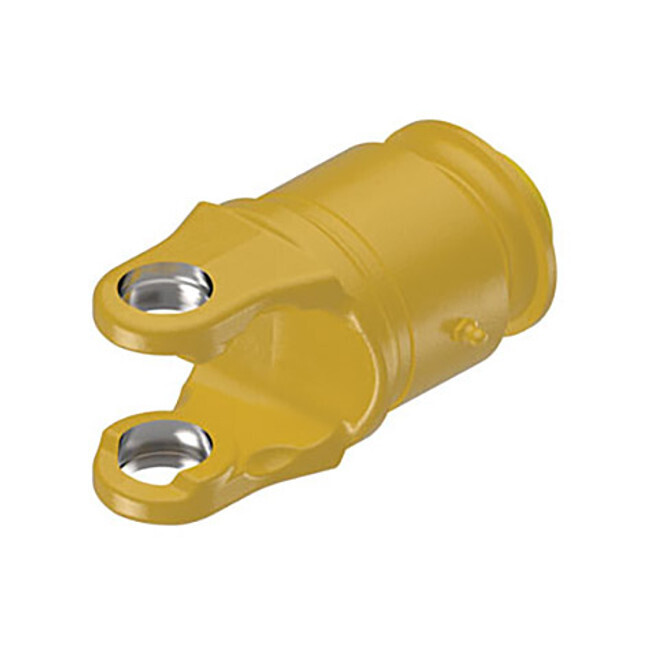

The 580-7606 Metric PTO Yoke (Series 2400) with Over-Running Clutch is designed for PTO-driven implements with significant rotating mass, allowing the implement to free-wheel to a stop when tractor PTO power is reduced or shut off. By preventing the implement from back-driving the tractor, the over-running clutch improves control and safety during deceleration and shutdown. This unit uses a 1-3/8" 6-spline bore with SPRING-LOK connection and is rated up to 66 HP at 540 RPM and 102 HP at 1,000 RPM. (Note: Over-running clutches do not absorb energy, so startup overload protection must be handled by other means.)

Country of Origin: Varies by production batch

Key Features / Specifications

• Part number: 580-7606
• Type: Metric PTO yoke with over-running clutch
• Series: 2400 Series
• Function: Allows implement to free-wheel and prevents back-driving the tractor when PTO stops
• Over-running direction: Application dependent (typical tractor PTO direction is clockwise)
• Bore 1: 1-3/8" 6 spline (35 mm)
• Connection 1: SPRING-LOK
• Bearing diameter: 1.26" (32 mm)
• Bearing span: 2.98" (76 mm)
• Outside diameter: 3.81" (97 mm)
• Overall length: 6.32" (161 mm)
• Power rating @ 540 RPM: 66 HP (49 kW)
• Power rating @ 1000 RPM: 102 HP (76 kW)
• Weight: 9.38 lb (4 kg)
• Shipping dimensions: 7" L × 4.09" H × 3.819" W (18 cm × 10 cm × 10 cm)
• Shipping volume: 74.72 in³ (1224 cm³)

Ideal For

• PTO implements with high rotational inertia that need to coast down safely
• Mowers, cutters, balers, and other equipment where back-driving can be an issue
• Operators wanting improved shutdown control and reduced tractor “push” effect
• Replacing a worn Series 2400 over-running clutch/yoke assembly
• Applications using 1-3/8" 6-spline PTO connections with SPRING-LOK retention
