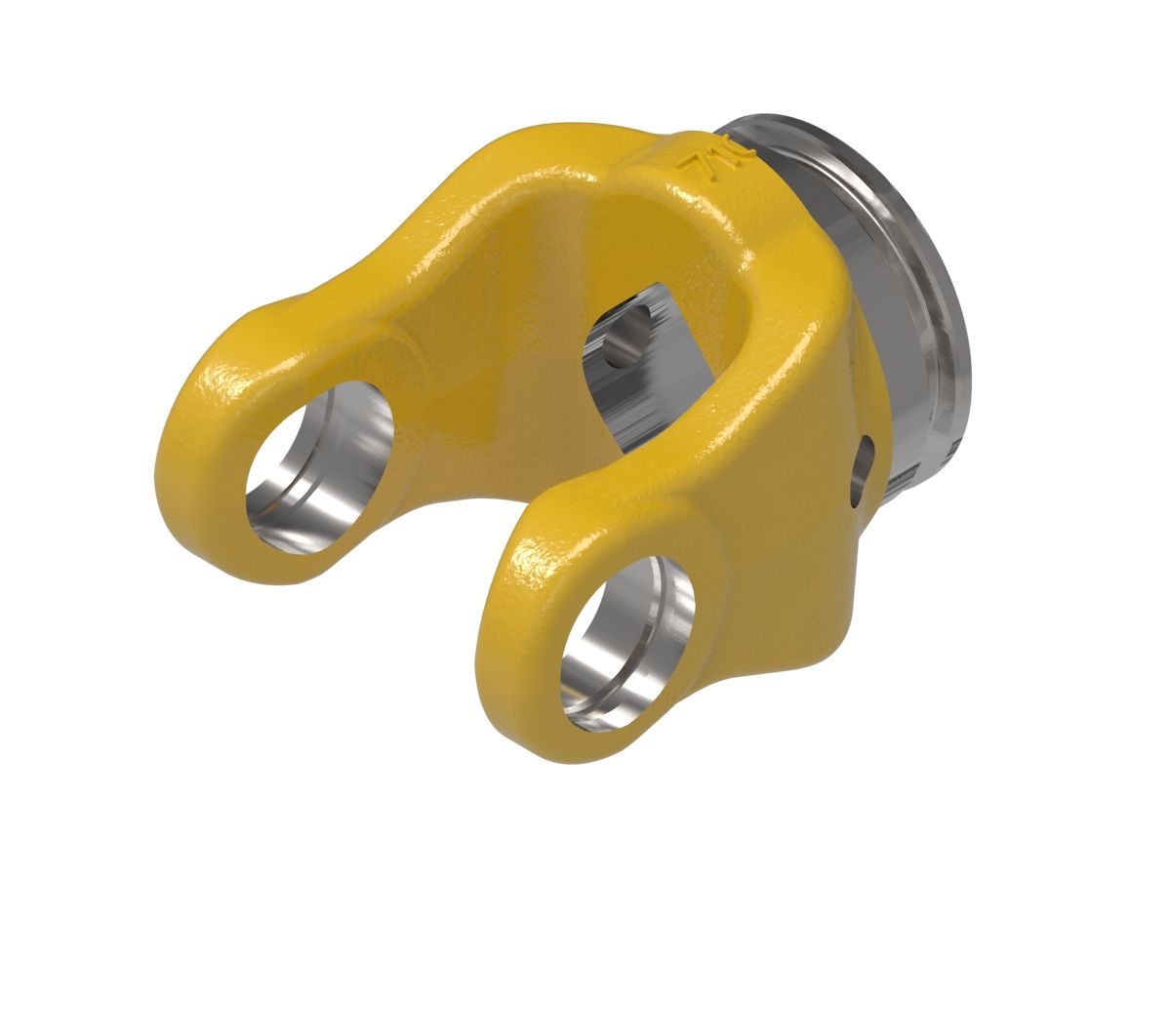

Metric Pto Yoke, Walterscheid Series 2100 Inner Lemon Profile, 23.8mm

Metric Pto Yoke, Walterscheid Series 2100 Inner Lemon Profile

The 300-7123 Metric PTO Yoke is a shaft (inner profile) yoke designed to connect a cross & bearing kit to the telescoping shaft/inner tube on compatible PTO driveline assemblies. Built in the Walterscheid Series 2100 pattern with an inner lemon profile, it uses a roll-pin connection and is sized for a 23 mm (23.8 mm nominal) lemon bore, making it a solid replacement option for metric PTO applications requiring reliable driveline fit and power transfer.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 300-7123
• Brand / Series: Walterscheid Series 2100 (metric profile)
• Product Type: Metric PTO shaft yoke (inner lemon profile yoke)
• Profile / Bore: 23 mm lemon (listed as 23.8 mm nominal)
• Connection Type: Roll pin
• Pin Hole: 0.31 in (8 mm)
• Outside Diameter: 1.85 in (47 mm)
• Length: 2.59 in (66 mm)
• Height: 2.80 in (71 mm)
• Width: 2.32 in (59 mm)
• Power Rating @ 1000 RPM: 29 HP (22 kW)
• Power Rating @ 540 RPM: 19 HP (14 kW)
• Weight: 1.16 lb (1 kg)
• Shipping Dimensions: 3.23 in L × 2.80 in H × 2.32 in W ( 8 cm L × 7 cm H × 6 cm W )
• Shipping Volume: 20.98 in³ (344 cm³)
• Shipping Weight: 1.16 lb (1 kg)

Ideal For

• Replacing an inner lemon profile PTO yoke on Walterscheid Series 2100 metric drivelines
• PTO shaft assemblies where the yoke must connect the cross & bearing kit to the telescoping inner tube
• Applications needing a 23 mm (23.8 mm nominal) lemon bore with a roll-pin retention style
• Farm and implement driveline repairs where matching profile, series, and pin-hole size is critical
