Metric Pto Yoke, Walterscheid Series 220/720

Metric Pto Yoke, Walterscheid Series 220/720 Inner Lemon Profile, 39.5mm

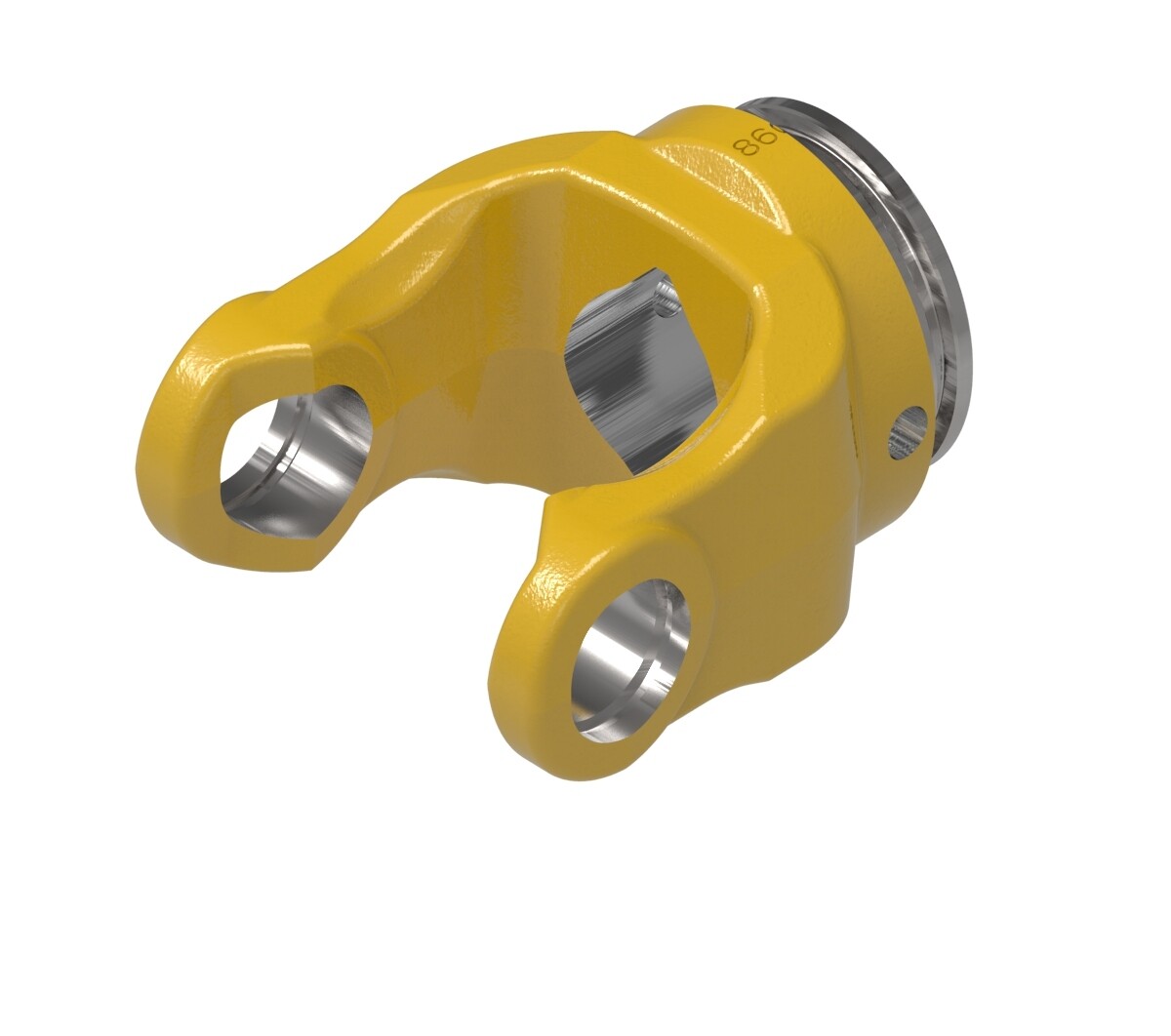

The 300-7539 Metric PTO Yoke (Walterscheid Series 220/720 Inner Lemon Profile) is a metric shaft/inner profile yoke used to connect cross and bearing kits to the telescoping shaft or inner tube on PTO drivelines. This Weasler-profile yoke features a 39 mm (listed as 39.5 mm) lemon profile bore and a roll pin connection, making it a solid fit for Walterscheid-style metric driveline assemblies where lemon-profile compatibility and compact size are required.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 300-7539
• Series / Fitment: Walterscheid Series 220/720 (Inner)
• Product Type: Metric PTO shaft yoke / inner profile yoke
• Bore: 1.53 in (39 mm) — 39 mm Lemon Profile
• Connection: Roll Pin
• Pin Hole: 0.39 in (10 mm)
• HP Rating @ 1000 RPM: 13 HP (10 kW)
• HP Rating @ 540 RPM: 8 HP (6 kW)
• Overall Length: 2.44 in (62 mm)
• Height: 2.33 in (59 mm)
• Width: 1.50 in (38 mm)
• Outside Diameter: 2.75 in (70 mm)
• Weight: 4.30 lb (2 kg)
• Shipping Dimensions: 3.01" L × 2.33" H × 1.5" W (8 cm L × 6 cm H × 4 cm W)
• Shipping Volume: 10.52 in³ (172 cm³)
• Shipping Weight: 4.30 lb (2 kg)

Ideal For

• PTO driveline repairs needing an inner profile (shaft) yoke for a telescoping inner tube
• Walterscheid-style metric drivelines requiring a Series 220/720 inner yoke
• Applications needing a 39 mm lemon profile yoke with a roll pin retention style
• Lightweight PTO applications where compact dimensions and lower HP ratings match the driveline requirements
• Replacing worn inner yokes while retaining existing cross & bearing kit geometry
