Metric Pto Yoke, Walterscheid Series 220/720 Outer

Metric Pto Yoke, Walterscheid Series 220/720 Outer Lemon Profile

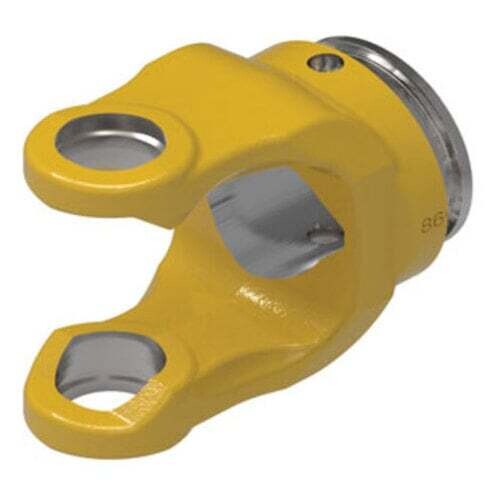

The 700-7548 Metric PTO Yoke is a Weasler profile metric tube/shaft yoke designed for Walterscheid Series 220/720 drivelines using an outer lemon profile connection. Built with a 48 mm lemon bore and a roll pin connection, it provides a secure attachment to the compatible telescoping tube/profile while delivering solid PTO driveline performance. It’s rated up to 79 HP @ 540 RPM and 122 HP @ 1000 RPM, making it a dependable replacement yoke for metric-profile PTO shaft assemblies.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 700-7548
• Brand / Profile Type: Weasler Profile (Metric)
• Product Type: Metric PTO yoke (lemon profile tube/shaft yoke)
• Compatibility: Walterscheid Series 220/720
• Bore Size: 1.88" (48 mm)
• Bore Style: 48 mm lemon
• Connection Type: Roll pin
• HP Rating: 79 HP @ 540 RPM; 122 HP @ 1000 RPM
• Overall Length: 4.13" (105 mm)
• Height: 4.49" (114 mm)
• Width: 2.76" (70 mm)
• Weight: 3.76 lb (2 kg)
• Shipping Dimensions: 5.06" L × 4.49" H × 2.76" W
• Shipping Weight: 3.76 lb

Ideal For

• Replacing a worn or damaged metric profile yoke on Walterscheid 220/720 drivelines
• PTO shafts using a 48 mm outer lemon profile telescoping tube connection
• Drivelines requiring a roll pin retained metric-profile yoke
• Applications running up to 79 HP @ 540 RPM or 122 HP @ 1000 RPM
• PTO rebuilds where correct metric profile fitment and secure retention are critical
