Metric Pto Yoke, Walterscheid Series 2200 Inner Profile

Metric Pto Yoke, Walterscheid Series 2200 Inner Profile

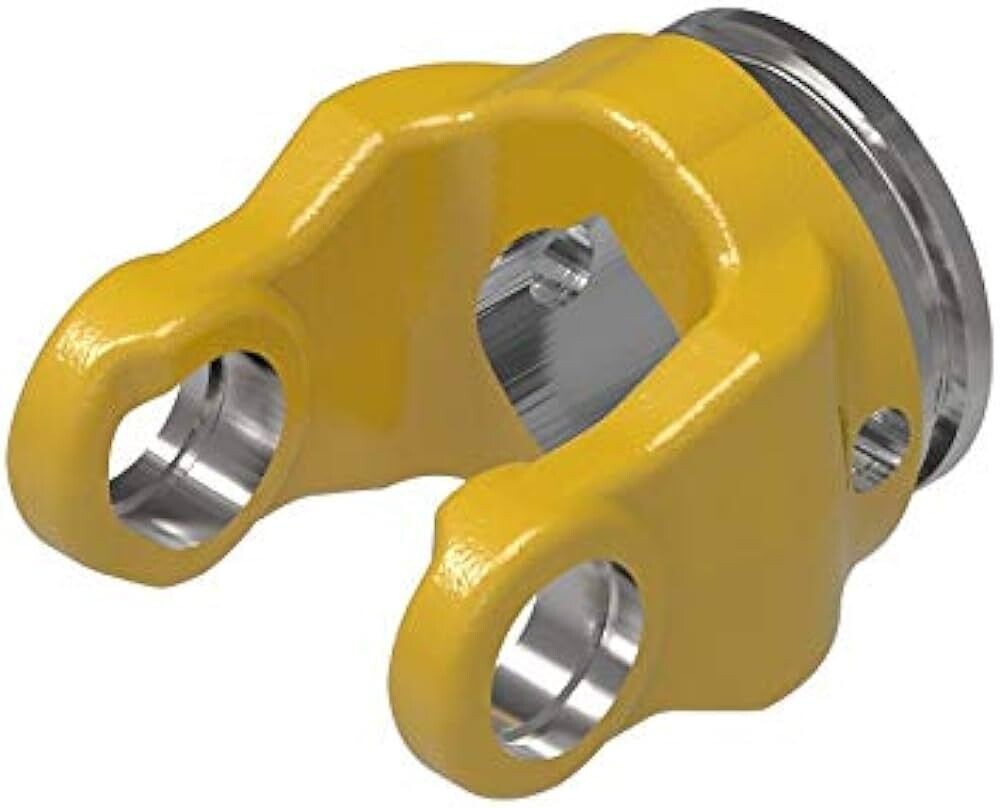

The 300-7234 Metric PTO Yoke is a Walterscheid Series 2200 inner profile (shaft) yoke designed to connect a cross and bearing kit to the telescoping inner shaft/tube in Weasler Profile metric PTO drivelines. Built with a 34 mm lemon-profile bore and a roll pin connection, it provides a secure fit for reliable driveline performance, with power handling up to 38 HP at 1000 RPM (and 25 HP at 540 RPM) for many agricultural PTO applications.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 300-7234
• Product Type: Metric PTO shaft yoke (inner profile yoke)
• Series Compatibility: Walterscheid Series 2200
• Bore / Profile: 34 mm lemon
• Bore Size: 1.33 in (34 mm) (listed as 34.5 mm in item title)
• Connection: Roll pin
• Pin Hole: 0.39 in (10 mm)
• Outside Diameter: 2.28 in (58 mm)
• Overall Length: 2.95 in (75 mm)
• Height: 3.35 in (85 mm)
• Width: 2.00 in (51 mm)
• Power Rating @ 1000 RPM: 38 HP (28 kW)
• Power Rating @ 540 RPM: 25 HP (19 kW)
• Weight: 1.64 lb (1 kg)
• Shipping Dimensions: 3.66" L × 3.35" H × 2.00" W
• Shipping Volume: 24.52 in³ (402 cm³)
• Shipping Weight: 1.64 lb (1 kg)

Ideal For

• Replacing or rebuilding Walterscheid 2200 Series PTO drivelines
• Applications needing a 34 mm lemon-profile inner yoke with roll pin retention
• PTO shafts operating at 540 or 1000 RPM within listed horsepower ratings
• Farm and shop driveline maintenance where correct profile fit and pin-hole sizing matter
