Metric Pto Yoke, Walterscheid Series 2300 Inner Profile

Metric Pto Yoke, Walterscheid Series 2300 Inner Profile

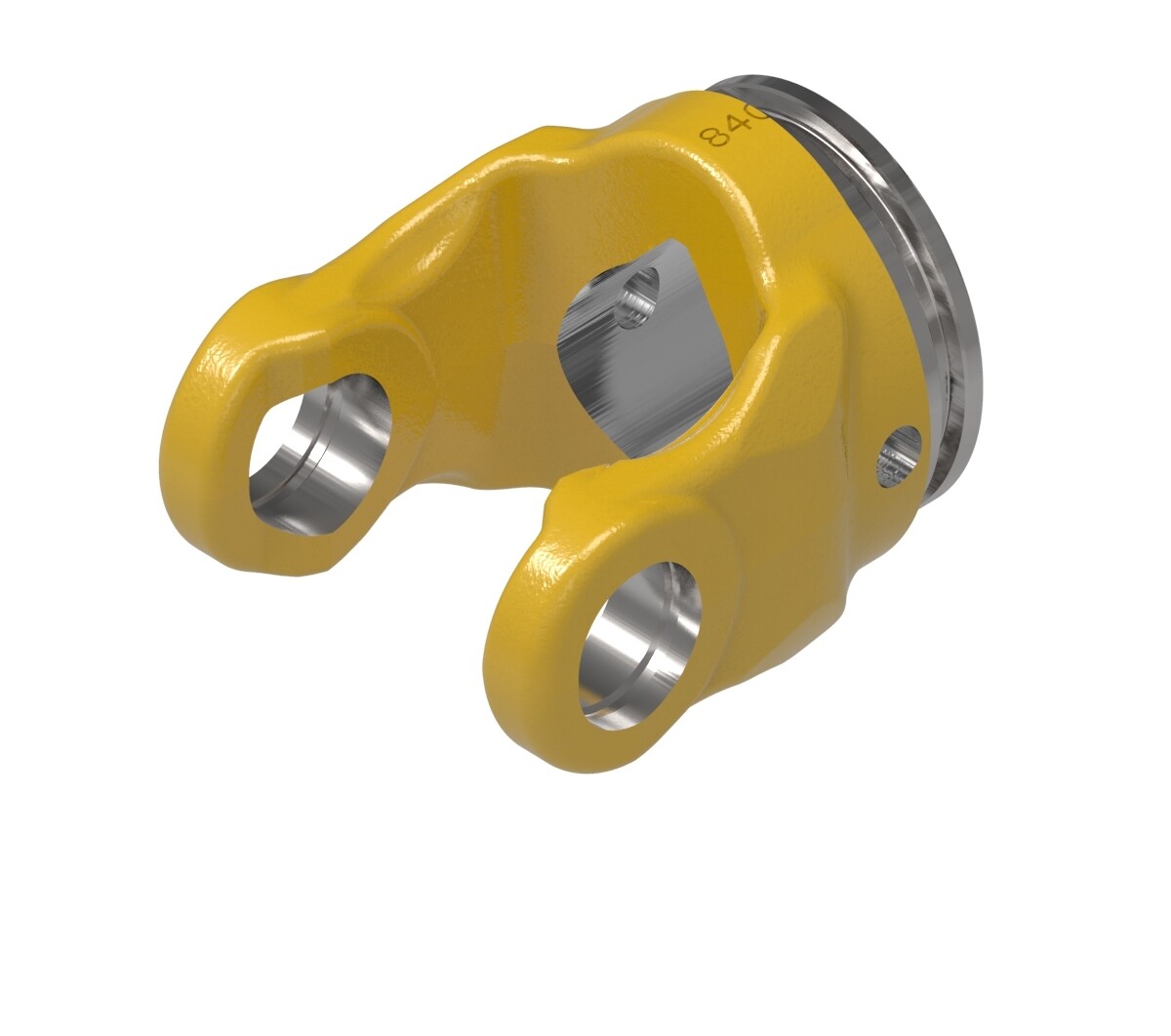

The 300-7439 Metric PTO Yoke is a Weasler PTO driveline yoke built for Walterscheid Series 2300 inner profile applications, providing a secure connection between PTO shafting and compatible equipment. It features a 39 mm (39.5 mm class) lemon-profile bore and a roll pin connection for reliable retention, and it’s rated up to 70 HP at 1000 RPM (and 45 HP at 540 RPM) for demanding agricultural PTO use.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 300-7439
• Brand: Weasler
• Product Type: Metric PTO yoke
• Compatibility / Profile: Walterscheid Series 2300 inner profile
• Bore: 39 mm (1.53 in.) — Lemon profile
• Connection Type: Roll pin
• Pin Hole Size: 10 mm (0.39 in.)
• Horsepower Rating @ 1000 RPM: 70 HP (52 kW)
• Horsepower Rating @ 540 RPM: 45 HP (34 kW)
• Overall Length: 3.34 in. (85 mm)
• Height: 3.82 in. (97 mm)
• Width: 2.36 in. (60 mm)
• Outside Diameter: 2.75 in. (70 mm)
• Shipping Dimensions: 4.21 in L × 3.82 in H × 2.36 in W (11 cm L × 10 cm H × 6 cm W)
• Shipping Volume: 37.95 in³ (622 cm³)
• Weight / Shipping Weight: 3.00 lb (1 kg)

Ideal For

• Replacing or assembling PTO drivelines using Walterscheid Series 2300 inner profile components
• Applications requiring a 39 mm lemon-profile bore with roll pin retention
• PTO setups running at 540 or 1000 RPM within the listed HP ratings
• Farm and equipment maintenance where durable, compatible metric PTO yokes are needed
