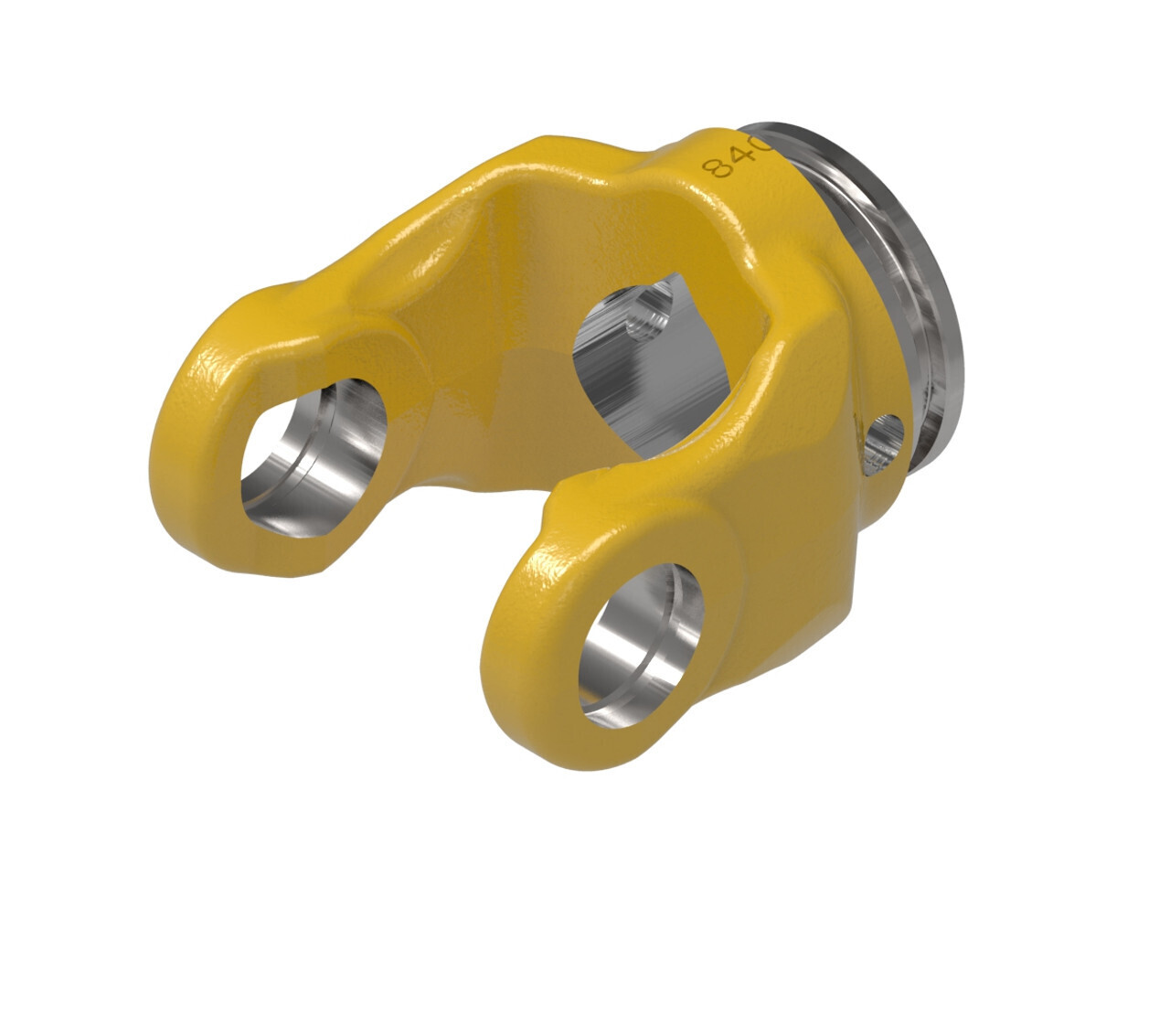

Metric Pto Yoke, Walterscheid Series 2300 Inner Profile

Metric Pto Yoke, Walterscheid Series 2300 Inner Profile

The 300-7434 Metric PTO Yoke (Walterscheid Series 2300 inner profile) is a metric shaft yoke / inner profile yoke designed to connect a cross and bearing kit to the telescoping shaft (inner tube) on compatible PTO drivelines. Built for Weasler/Walterscheid-style metric applications, it uses a 34 mm lemon inner profile with a roll pin connection, making it a solid choice for replacing worn yokes or building a driveline to match Series 2300 requirements. Rated for up to 70 HP at 1000 RPM (or 45 HP at 540 RPM), it supports reliable power transfer in demanding farm and equipment use.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 300-7434
• Product Type: Metric PTO shaft yoke (inner profile yoke)
• Series / Compatibility: Walterscheid Series 2300
• Profile / Bore: 34 mm lemon (listed as 34 MM LEMON)
• Bore (Imperial Equivalent): 1.33" (34 mm)
• Connection Type: Roll pin
• Pin Hole Diameter: 10 mm (0.39")
• Rated Power @ 1000 RPM: 70 HP (52 kW)
• Rated Power @ 540 RPM: 45 HP (34 kW)
• Overall Length: 85 mm (3.34")
• Height: 97 mm (3.82")
• Outside Diameter: 58 mm (2.28")
• Width: 60 mm (2.36")
• Weight: 1 kg (2.32 lb)
• Shipping Dimensions: 11 cm L × 10 cm H × 6 cm W
• Shipping Volume: 622 cm³ (37.95 in³)
• Shipping Weight: 1 kg (2.32 lb)

Ideal For

• Replacing a worn or damaged inner profile PTO yoke on Walterscheid Series 2300 drivelines
• PTO shafts using a 34 mm lemon metric profile with a roll pin retention style
• Farm implements and driveline repairs where matching HP ratings and correct profile fit are critical
• Maintenance shops building or servicing telescoping PTO drivelines (inner tube side)
• Operators needing a reliable connection point for cross and bearing kits on the inner shaft
