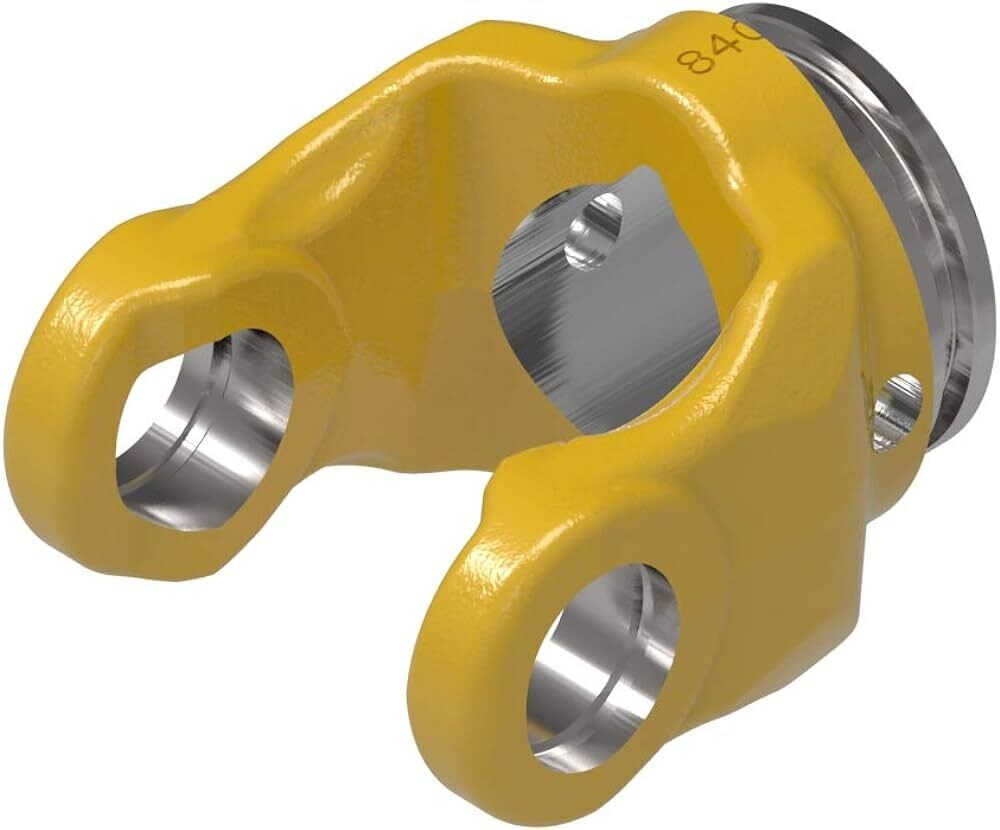

Metric Pto Yoke, Walterscheid Series 2300 Outer, 41.3mm

Metric Pto Yoke, Walterscheid Series 2300 Outer Profile

The 700-7441 Metric PTO Yoke (Walterscheid Series 2300 outer profile) is a Weasler Profile metric tube/outer profile yoke designed to connect cross and bearing kits to the outer tube side of a telescoping PTO shaft. This yoke uses a 41 mm (41.3 mm) lemon-profile bore with a roll pin connection, providing a secure fit for Series 2300-style metric PTO driveline applications while supporting dependable power transfer at both 540 RPM and 1000 RPM.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 700-7441
• Product Type: Metric PTO tube/outer profile yoke
• Series / Profile: Walterscheid Series 2300 outer profile
• Bore Size: 1.61 in / 41 mm (41.3 mm)
• Bore Type: 41 mm lemon profile
• Connection Type: Roll pin
• Horsepower Rating @ 540 RPM: 45 HP / 34 kW
• Horsepower Rating @ 1000 RPM: 70 HP / 52 kW
• Overall Length: 3.34 in / 85 mm
• Height: 3.82 in / 97 mm
• Width: 2.36 in / 60 mm
• Weight: 2.12 lb / 1 kg
• Shipping Dimensions: 4.21" L × 3.82" H × 2.36" W (11 × 10 × 6 cm)
• Shipping Volume: 37.95 in³ / 622 cm³

Ideal For

• Replacing or building a Walterscheid Series 2300 metric driveline connection
• PTO shafts needing a 41 mm lemon-profile outer/tube yoke
• Agricultural equipment using telescoping PTO shafts with metric profile components
• Operators wanting a roll-pin style yoke connection for secure driveline fitment
• Applications running at 540 or 1000 RPM PTO speeds within the listed HP ratings
