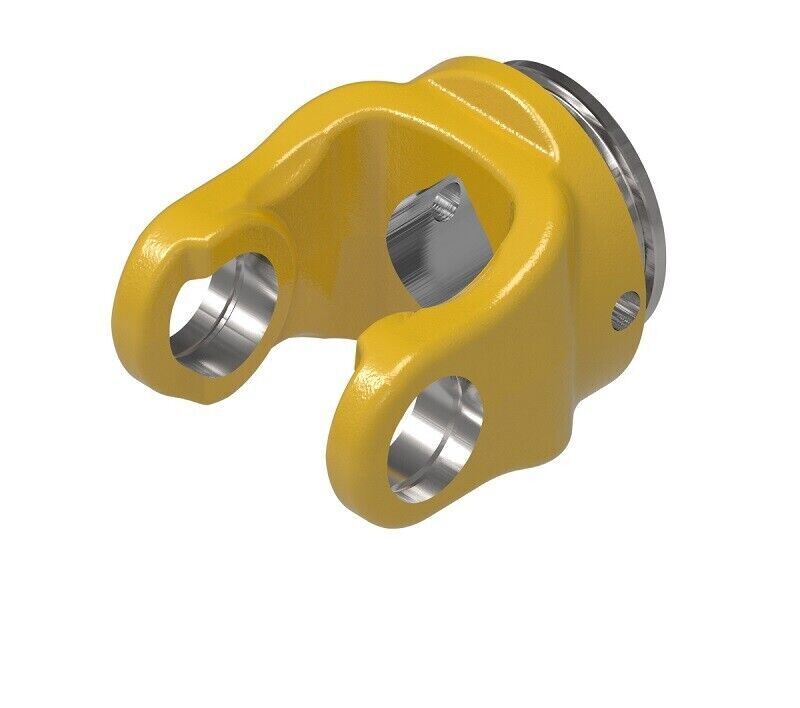

Metric Pto Yoke, Walterscheid Series 2400 Inner

Metric Pto Yoke, Walterscheid Series 2400 Inner Lemon Profile, 39.5mm

The 300-7639 Metric PTO Yoke (Walterscheid Series 2400 Inner Lemon Profile) is a metric shaft/inner profile yoke used to connect cross and bearing kits to the telescoping shaft or inner tube on PTO drivelines. This Weasler-profile yoke features a 39 mm (listed as 39.5 mm) lemon profile bore with a roll pin connection, making it a solid choice for Walterscheid-style metric driveline assemblies requiring lemon-profile compatibility and a higher horsepower rating.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 300-7639
• Series / Fitment: Walterscheid Series 2400 (Inner)
• Product Type: Metric PTO shaft yoke / inner profile yoke
• Bore: 1.53 in (39 mm) — 39 mm Lemon Profile
• Connection: Roll Pin
• Pin Hole: 0.39 in (10 mm)
• HP Rating @ 1000 RPM: 102 HP (76 kW)
• HP Rating @ 540 RPM: 66 HP (49 kW)
• Overall Length: 3.62 in (92 mm)
• Height: 4.09 in (104 mm)
• Width: 2.76 in (70 mm)
• Outside Diameter: 2.75 in (70 mm)
• Weight: 3.78 lb (2 kg)
• Shipping Dimensions: 4.59" L × 4.09" H × 2.76" W (12 cm L × 10 cm H × 7 cm W)
• Shipping Volume: 51.81 in³ (849 cm³)
• Shipping Weight: 3.78 lb (2 kg)

Ideal For

• PTO driveline repairs needing an inner profile (shaft) yoke for a telescoping inner tube
• Walterscheid-style metric drivelines requiring a Series 2400 inner yoke
• Applications needing a 39 mm lemon profile yoke with roll pin retention
• Equipment operating at higher PTO loads up to 66 HP @ 540 RPM or 102 HP @ 1000 RPM
• Replacing worn inner yokes while retaining existing cross & bearing kit geometry
