Metric Pto Yoke, Walterscheid Series I Inner

Metric Pto Yoke, Walterscheid Series I Inner Profile, 34.5mm

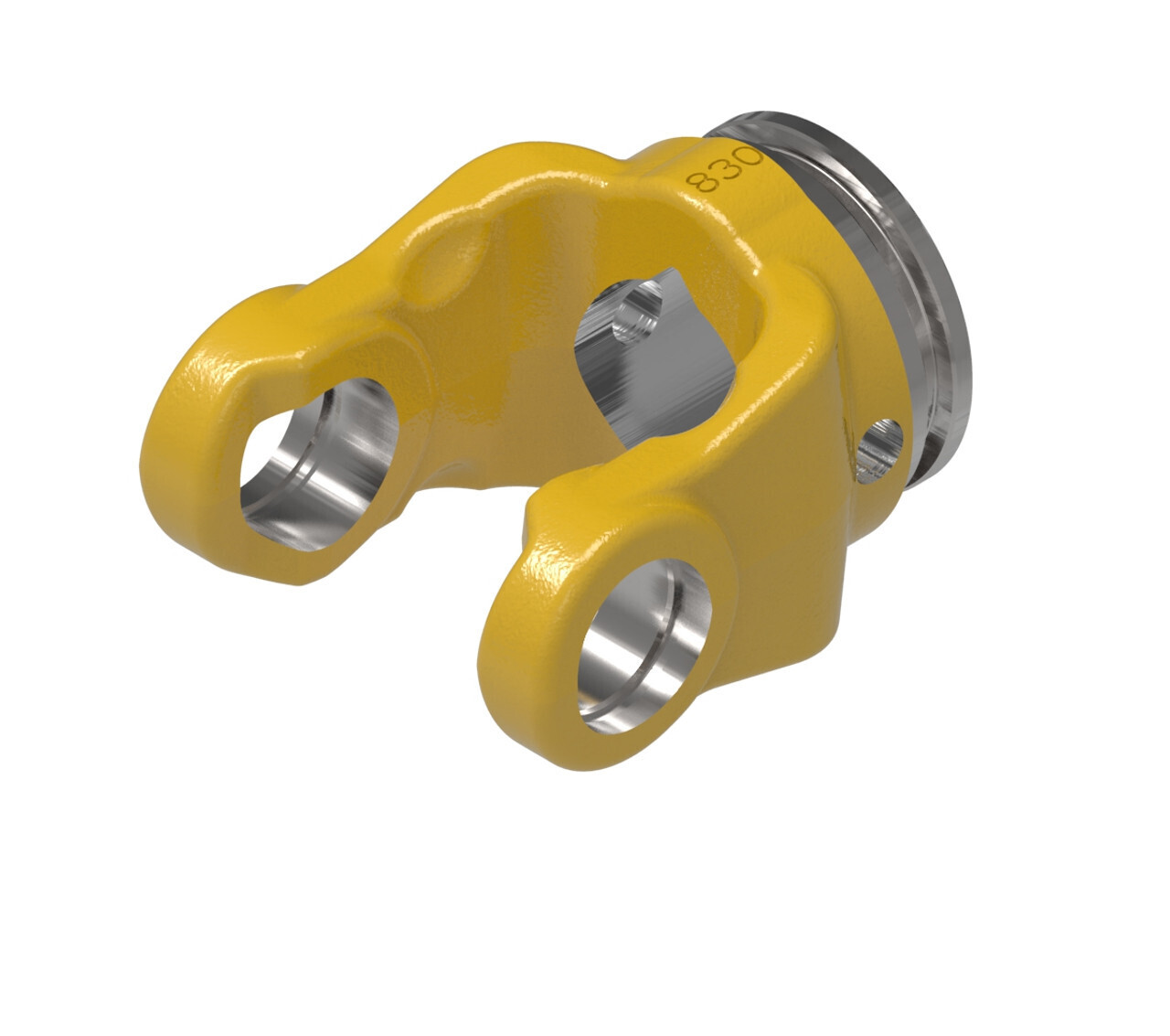

The 300-7334 Metric PTO Yoke is a Walterscheid Series I inner profile (shaft) yoke designed to connect a cross and bearing kit to the telescoping shaft/inner tube in PTO driveline assemblies. Built with a metric lemon profile and a roll pin connection, it provides a secure, properly matched interface for reliable power transfer in common 540 and 1000 RPM PTO applications.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 300-7334
• Product Type: Metric PTO Shaft Yoke (Inner Profile Yoke)
• Series / Profile: Walterscheid Series I — Inner Profile
• Bore: 1.33 in (34 mm) — 34 mm Lemon
• Connection Type: Roll Pin
• Pin Hole: 0.39 in (10 mm)
• Rated Power @ 1000 RPM: 58 HP (43 kW)
• Rated Power @ 540 RPM: 38 HP (28 kW)
• Overall Length: 3.15 in (80 mm)
• Height: 3.48 in (88 mm)
• Width: 2.17 in (55 mm)
• Outside Diameter: 2.28 in (58 mm)
• Item Weight: 1.96 lb (1 kg)
• Shipping Dimensions: 3.96 in L × 3.48 in H × 2.17 in W (10 cm L × 9 cm H × 6 cm W)
• Shipping Volume: 29.90 in³ (490 cm³)
• Shipping Weight: 1.96 lb (1 kg)

Ideal For

• Replacing an inner profile (shaft) yoke on Walterscheid Series I PTO drivelines
• Metric profile systems requiring a 34 mm lemon inner profile
• Installations using roll pin retention with a 10 mm pin hole
• Implements operating at 540 or 1000 RPM within the listed HP ratings
• PTO driveline rebuilds where matching the inner profile geometry is critical for smooth telescoping fit
