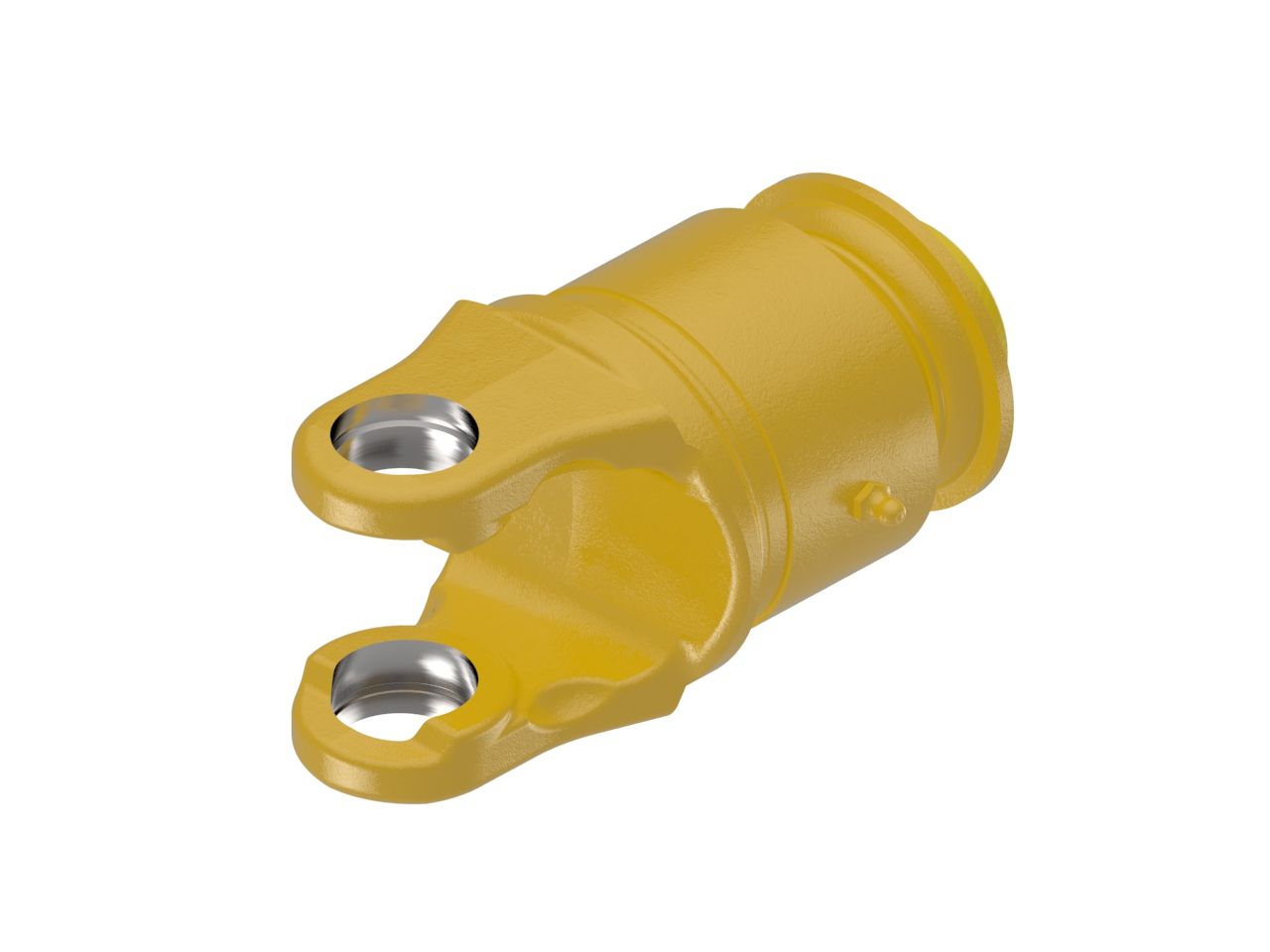

Metric QD Over-Running Clutch Pto Yoke, 1-3/8"-6Spline B&P 4-Series & 2300-Series

Metric QD Over-Running Clutch Pto Yoke, 1-3/8"-6Spline B&P 4-Series & 2300-Series

The Metric QD Over-Running Clutch PTO Yoke (1-3/8" 6-spline) is designed to protect tractors and driveline systems by allowing implements with rotating mass to free-wheel to a stop when PTO power is reduced or shut off. By preventing the implement from back-driving the tractor once the PTO shaft stops, this clutch improves control and reduces driveline shock in the right applications. Built for B&P 4-Series and 2300-Series compatibility, it uses a Spring-Lok connection and is rated for solid horsepower transfer at both 540 and 1000 RPM PTO speeds.

Country of Origin
Varies by production batch

Key Features / Specifications

• Component Type: Metric QD over-running clutch PTO yoke
• Series Compatibility: B&P 4-Series & 2300-Series
• Function: Allows implement to free-wheel to a stop; prevents implement from driving the tractor when PTO stops
• Direction Note: Overrunning clutch direction is application-dependent (typical tractor PTO rotation is clockwise)
• Energy Absorption Note: Does not absorb energy; startup overloads must be handled by other protection methods
• Spline / Bore: 1-3/8" x 6 spline (Bore 1: 1.37" / 35 mm; listed as 1 3/8-6 SPLINE)
• Connection Type: SPRING-LOK
• Bearing Diameter: 1.06" (27 mm)
• Bearing Span: 2.93" (74 mm)
• Power Rating @ 1000 RPM: 70 HP (52 kW)
• Power Rating @ 540 RPM: 45 HP (34 kW)
• Length: 3.81" (97 mm)
• Outside Diameter: 3.81" (97 mm)
• Weight: 8.42 lb (4 kg)
• Shipping Dimensions: 4.683" L × 3.82" H × 3.819" W
• Shipping Volume: 68.32 in³ (1120 cm³)
• Shipping Weight: 8.42 lb (4 kg)

Ideal For

• PTO-driven implements with large rotating mass that need free-wheeling capability
• Applications where preventing tractor back-drive improves safety and driveline control
• Replacing worn overrunning clutches on compatible B&P 4-Series / 2300-Series drivelines
• Farm equipment setups using a 1-3/8" 6-spline PTO connection
• Operators who need rated horsepower transfer at common 540 or 1000 RPM PTO speeds
