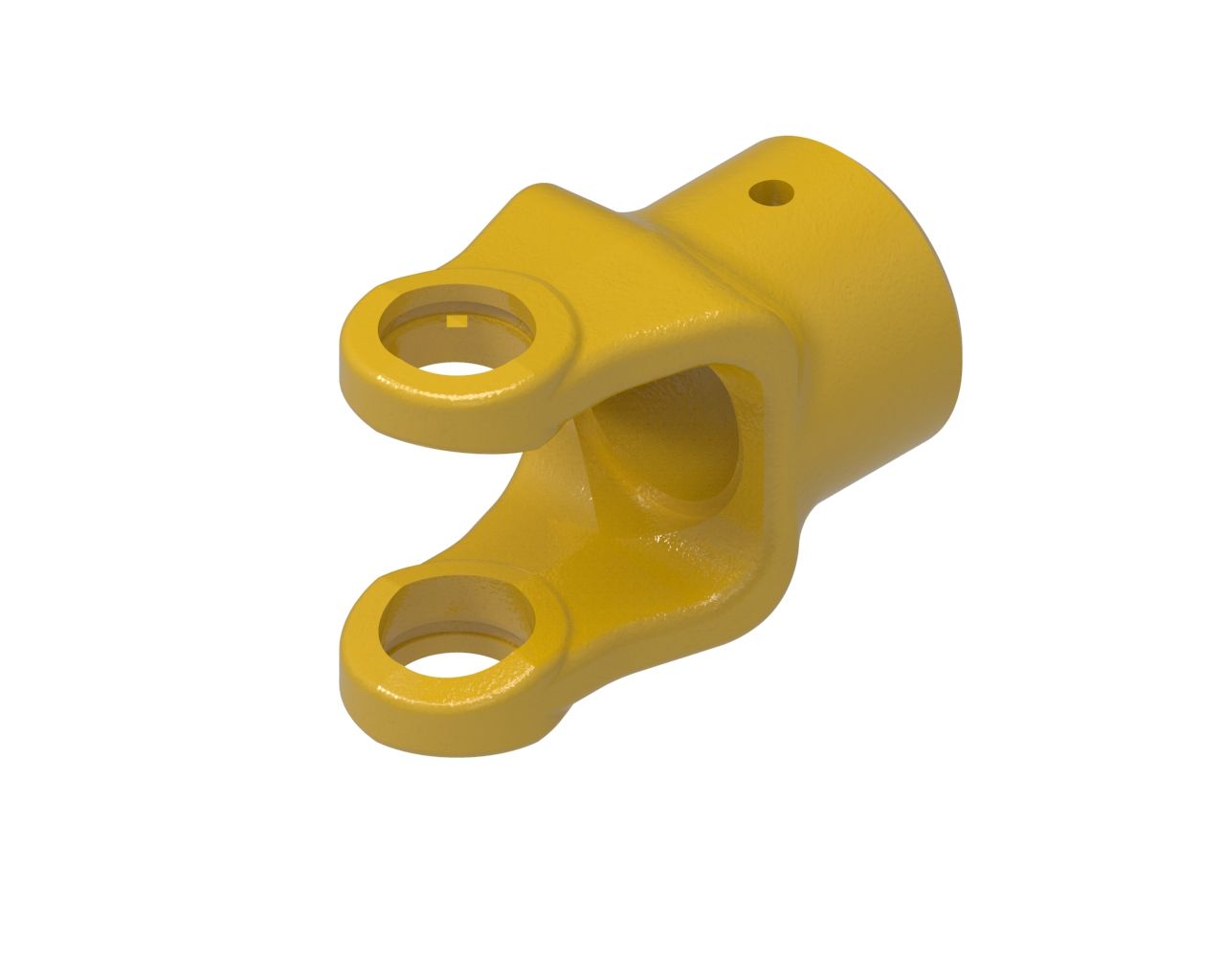

Metric Shear Pin Yoke, W2100 1-1/4" Bar

Metric Shear Pin Yoke, W2100 1-1/4"

The 802-7110 Metric Shear Pin Yoke is a Weasler W2100-series yoke designed to provide implement overload protection by disconnecting power when excessive load occurs. Its shear pin (bolt) design breaks under overload to prevent damaging torque spikes or heat, helping protect the drivetrain. After replacing the bolt, operation can be quickly restored—making it a compact, efficient solution for equipment that needs repeatable, dependable overload protection.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 802-7110
• Brand / Series: Weasler W2100
• Product Type: Metric shear pin yoke
• Bore: 1-1/4 in (32 mm) — Round
• Connection Type: Pin
• Pin Hole: 0.25 in (6 mm)
• Shear Bolt (as provided): (1) 1/4 Grade 2
• HP Rating @ 1000 RPM: 29 HP (22 kW)
• HP Rating @ 540 RPM: 19 HP (14 kW)
• Torque (as provided): 5800
• Dimensions: 3.07 in (L) × 2.80 in (H) × 2.32 in (W) (78 × 71 × 59 mm)
• Weight: 1.56 lb (1 kg)
• Shipping Dimensions (as provided): 3.7" L × 2.8" H × 2.32" W (9 × 7 × 6 cm)
• Shipping Volume (as provided): 24.04 in³ (394 cm³)
• Shipping Weight (as provided): 1.56 lb (1 kg)
• Performance Benefits (as provided):
  • Implement overload protection
  • Minimal maintenance
  • Repeatable overload disengagement setting
  • Smooth disengaged operation with no damaging torque spikes
  • No damaging heat generation
  • Reduces possibility of damage

Ideal For

• PTO driveline setups needing overload protection on implements
• Equipment using Weasler W2100 components and a 1-1/4" round bore
• Operators who want a simple, serviceable shear-bolt safety disconnect
• Applications where preventing torque spikes and heat buildup protects drivetrains
