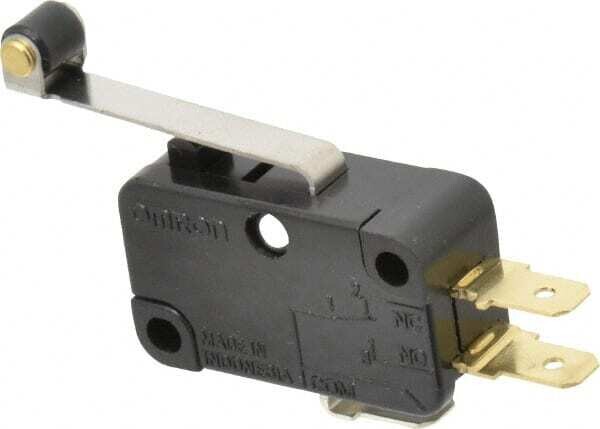

Micro Switch w/Simulated Hinge Roller
SKU 54045273
$11.39
In stock: 3 available
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Micro Switch w/Simulated Hinge Roller
Product Details
UPC: 4536854266317
Weight: 0.20 lbs
Micro Switch w/Simulated Hinge Roller
The 54045273 Micro Switch with Simulated Hinge Roller is a general-purpose snap action switch designed for reliable electrical control in industrial and equipment applications. Featuring a hinge roller lever actuator and SPDT configuration, this switch delivers dependable switching performance across both AC and DC circuits. Compact in size and equipped with quick connect terminals, it’s built for consistent operation in a wide range of environments.
Country of Origin
Varies by production batch
Key Features / Specifications
- Model / Part Number: 54045273
- Product Type: Micro Switch – Snap Action
- Configuration: SPDT (Single Pole Double Throw)
- Actuator Type: Hinge Roller Lever
- Contact Rating:
- 10 Amp at 250 VAC
- 0.6 Amp at 125 VDC
- 0.3 Amp at 250 VDC
- Voltage Rating: 250 VAC
- Terminal Type: Quick Connect
- Maximum Operating Force: 4.4 oz
- Operating Temperature Range: –13°F to 176°F
- Dimensions:
- Height: 18.8 mm
- Length: 37.8 mm
- Width: 10.3 mm
Ideal For
- Industrial and equipment control circuits
- Limit switch and position sensing applications
- Agricultural and machinery electrical systems
- Installations requiring compact, reliable snap action switching
