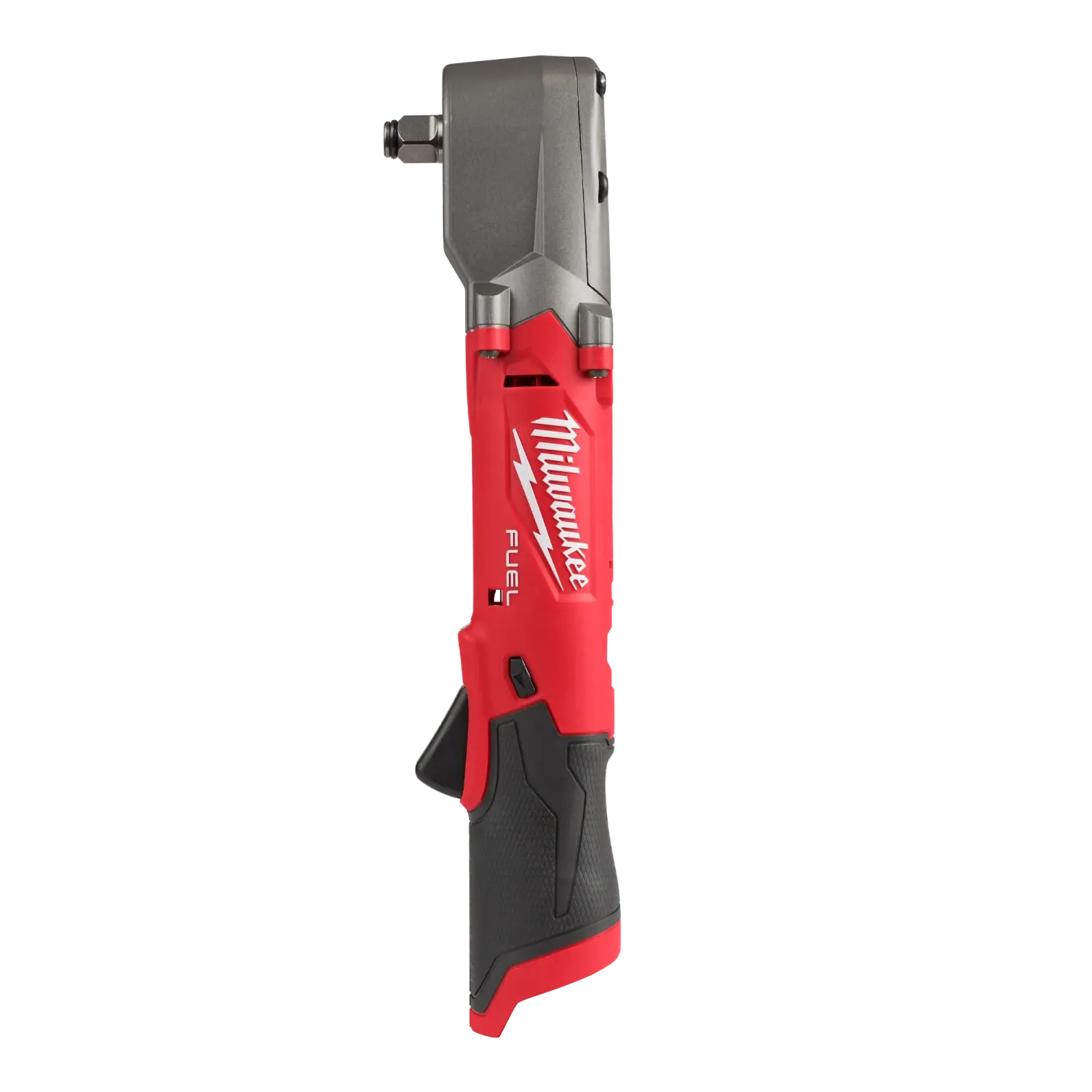

Milwaukee M12 Fuel 1/2"DR Right-Angle Impact Wrench

Milwaukee M12 Fuel 1/2"DR Right-Angle Impact Wrench

The Milwaukee 2565-20 M12 FUEL™ 1/2" Right-Angle Impact Wrench is a compact, hard-to-reach fastening solution that delivers serious torque where other tools simply won’t fit. With up to 220 ft-lbs of nut-busting torque and a low-profile 2.2" head, it’s built for tight engine bays, cramped assemblies, and awkward angles that normally require creative language (and maybe a few scraped knuckles). Equipped with 4-Mode DRIVE CONTROL™, AUTO SHUT-OFF™, and Bolt Removal Mode, this tool delivers both power and precision—so you can break bolts loose without breaking your workflow.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 2565-20
• Tool Type: Cordless right-angle impact wrench (bare tool)
• Drive Size: 1/2" anvil with friction ring
• Motor Type: POWERSTATE™ brushless motor
• Max Torque: Up to 220 ft-lbs nut-busting torque
• Head Profile: 2.2" compact head for tight access
• Body Length: 14.17" extended profile for hard-to-reach applications
• Drive Control: 4-Mode DRIVE CONTROL™ for speed and power adjustment
  • Mode 1: 0–1,550 RPM
  • Mode 2: 0–2,300 RPM
  • Mode 3: 0–3,000 RPM
  • Mode 4: 0–3,000 RPM
• Impact Rates (IPM):
  • Mode 1: 0–1,350 IPM
  • Mode 2: 0–2,700 IPM
  • Mode 3: 0–3,600 IPM
  • Mode 4: 0–3,600 IPM
• Auto Shut-Off Mode: Limits torque to 15 ft-lbs in forward to prevent overtightening
• Bolt Removal Mode: Slows RPM after breakaway to improve control and prevent fastener drops
• Kickback Control: Engineered mechanism to reduce kickback during operation
• Lighting: Integrated LED light for workspace visibility
• Electronics: REDLINK PLUS™ Intelligence for overload, heat, and discharge protection
• Battery Compatibility: Works with all M12™ REDLITHIUM™ batteries (not included)

Ideal For

• Automotive and fleet work in tight engine bays and suspension areas
• Removing stubborn fasteners where standard impact wrenches won’t fit
• Precision fastening where controlled torque matters
• Technicians needing right-angle access with strong breakaway power
• Anyone tired of using three extensions and a prayer just to reach one bolt
