Milwaukee M12 Fuel Installation Drill/Driver (Bare Tool)

Milwaukee M12 Fuel Installation Drill/Driver (Bare Tool)

The 2505-20 Milwaukee M12 FUEL™ Installation Drill/Driver (Bare Tool) is a compact, multi-head drill/driver built to deliver exceptional access and control for installation work in tight or awkward spaces. With four dedicated heads that mount in 16 positions, a slim profile with inline grip, and up to 300 in-lbs of torque, it’s designed as a true 4-in-1 solution for electrical, cabinet, MRO, HVAC, automotive, and remodel applications.

Country of Origin: Varies by production batch

Key Features / Specifications

• Brand: Milwaukee
• Part Number: 2505-20
• Product Type: Installation drill/driver (bare tool)
• Platform: M12 FUEL™
• Max Torque: 300 in-lbs
• Max Speed: 1600 RPM
• Motor: POWERSTATE™ brushless

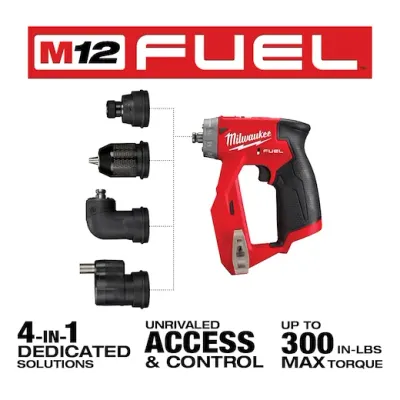

• Heads / Attachments Included (4):

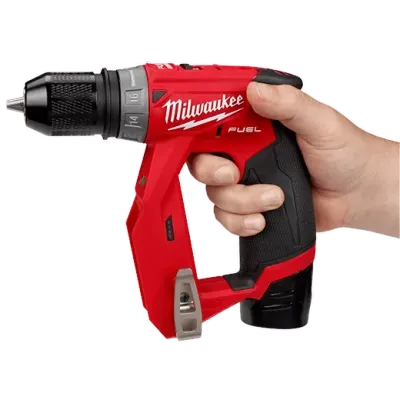

  • 3/8" chuck
  • Offset driver
  • 1/4" hex

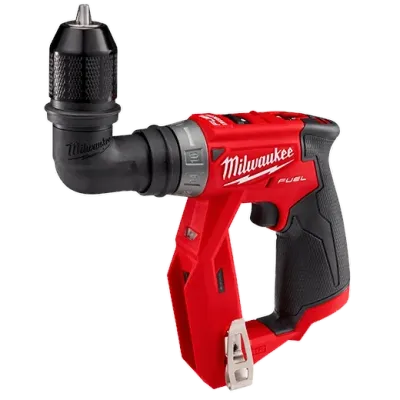

  • Right angle
• Head Positions: Heads attach in 16 different positions
• Access / Control Design:
  • Slim tool profile
  • Inline rear grip for enhanced control and access
  • Flat top allows tool to sit flush against surfaces for added access
• Bit Storage: Front magnetic bit holder holds multiple bits
• Electronics: REDLINK PLUS™ Intelligence for overload/overheat protection
• Battery Note: Uses M12™ REDLITHIUM™ battery packs (not included)

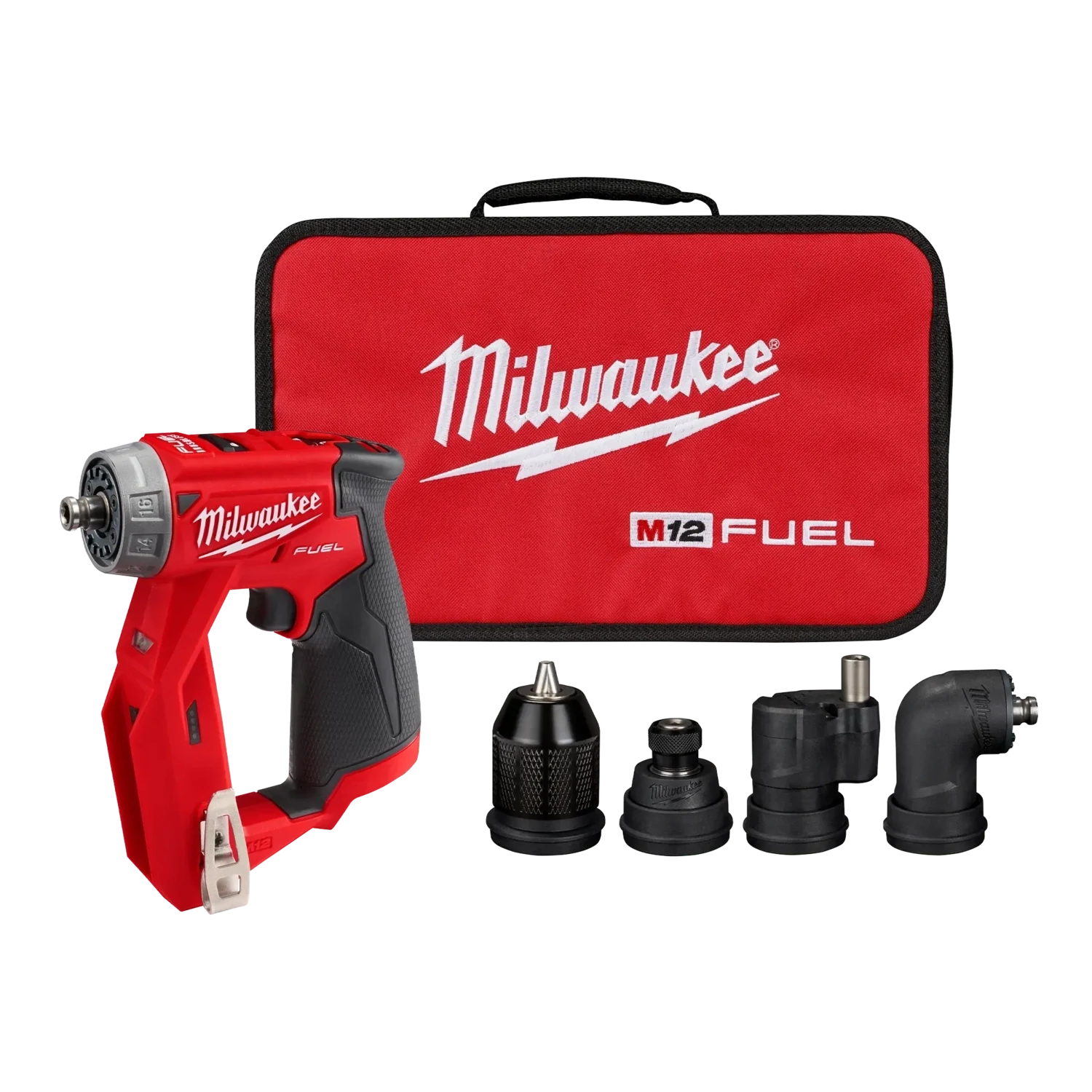

• Included Storage: Compartmentalized contractor bag to hold the tool and each head

Ideal For

• Installation work in tight, offset, or right-angle fastening locations
• Electricians, cabinet installers, and techs needing a 4-in-1 modular drill/driver
• MRO, HVAC, automotive, and remodel tasks requiring compact power and control
• Users who want quick swapping between chuck, hex, offset, and right-angle heads without changing tools
