Milwaukee M18 Fuel 3/8Dr Compact Impact Wrench (Bare Tool)

Milwaukee M18 Fuel 3/8Dr Compact Impact Wrench (Bare Tool)

The Milwaukee 2854-20 M18 FUEL™ 3/8" Compact Impact Wrench is a small-frame powerhouse built for tight access and serious torque. Measuring just 4.8" in length, it’s designed to get into places where larger tools simply can’t reach—without giving up performance. With a POWERSTATE™ brushless motor delivering up to 250 ft-lbs of nut-busting torque, plus tri-LED lighting and 4-Mode DRIVE CONTROL™, this tool gives you precision, control, and visibility all in one compact package. It’s proof that good things come in small, very strong packages.

Country of Origin
Varies by production batch

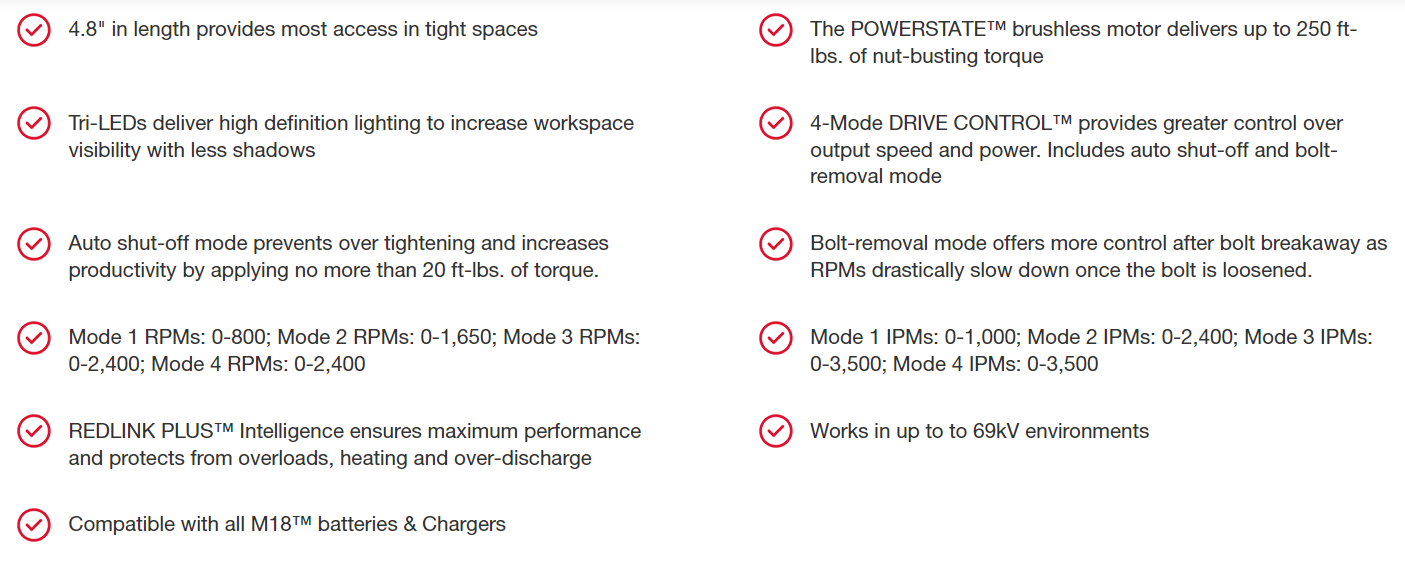

Key Features / Specifications

• Model / Part Number: 2854-20
• Drive Size: 3/8" with friction ring
• Motor Type: POWERSTATE™ brushless motor
• Max Torque: 250 ft-lbs nut-busting torque
• Length: 4.8" compact design for maximum access in tight spaces

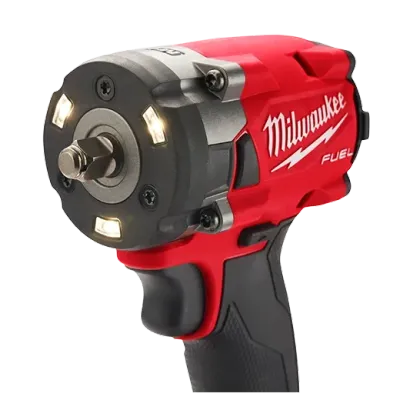

• Lighting: Tri-LED system for bright, shadow-reducing illumination

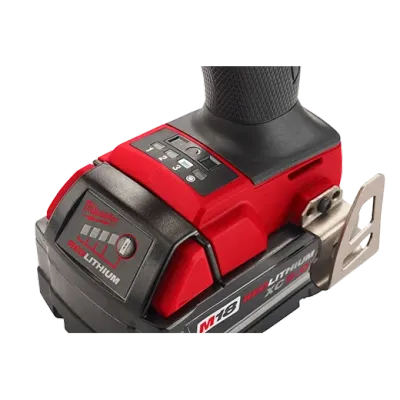

• Speed Modes: 4-Mode DRIVE CONTROL™ for precision and versatility
  • Mode 1: 0–800 RPM
  • Mode 2: 0–1,650 RPM
  • Mode 3: 0–2,400 RPM
  • Mode 4: 0–2,400 RPM
• Impact Rates (IPM):
  • Mode 1: 0–1,000 IPM
  • Mode 2: 0–2,400 IPM
  • Mode 3: 0–3,500 IPM
  • Mode 4: 0–3,500 IPM
• Auto Shut-Off Mode: Limits fastening torque to 20 ft-lbs to prevent overtightening
• Bolt Removal Mode: Slows RPM after bolt breakaway to prevent fastener drops
• Electronics: REDLINK PLUS™ Intelligence for overload, overheating, and over-discharge protection
• Compatibility: Works with all M18™ REDLITHIUM™ batteries and chargers (battery not included)
• Environment Rating: Suitable for use in environments up to 69kV

Ideal For

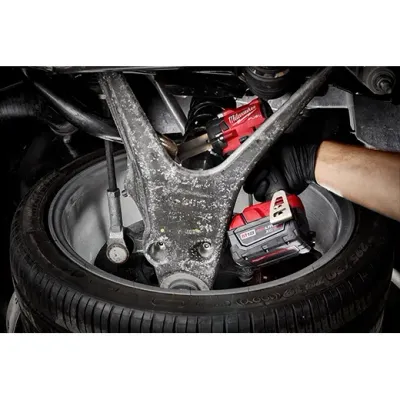

• Automotive and mechanical work in tight or confined spaces
• Users needing compact size without sacrificing torque output
• Precision fastening applications requiring controlled torque settings
• Technicians who benefit from enhanced visibility in low-light areas
• Anyone who wants a tool that fits where others won’t—but still hits like it should
