Milwaukee M18 Fuel Hammer Drill/Impact

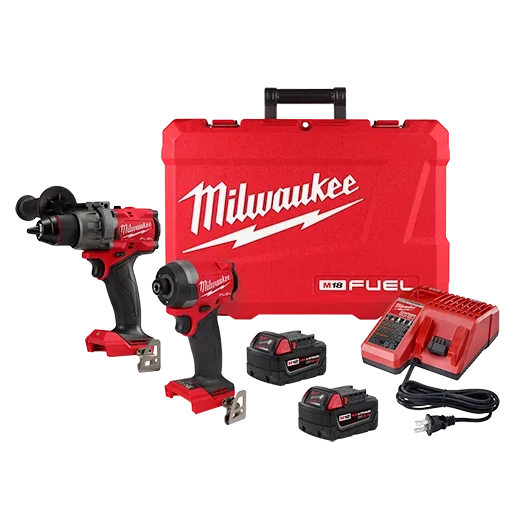

Milwaukee M18 Fuel Hammer Drill/Impact Driver Kit

The Milwaukee 3697-22 M18 FUEL™ Hammer Drill & Impact Driver Kit is a top-tier cordless combo built to handle everything from light fastening to heavy-duty drilling with speed and precision. Featuring POWERSTATE™ brushless motors in both tools, this kit delivers exceptional power, compact size, and advanced control, making it a go-to setup for professionals who need reliability across a wide range of applications. With fast driving speeds, Auto-Stop safety features, and multiple drive modes, it’s designed to work hard—without working you over.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 3697-22
• Platform: Milwaukee M18 FUEL™
• Kit Type: Hammer drill & impact driver combo kit

Hammer Drill (2904-20):

• Chuck Size: 1/2 in
• Length: 6.9 in (compact for tight spaces)
• Motor: POWERSTATE™ Brushless Motor
• Torque: Up to 2,000 in-lbs
• Modes: Drill, Drive, Hammer Drill
• Clutch: Mechanical clutch for consistent fastener driving
• Safety: Auto-Stop feature to prevent over-rotation in bind-up
• Application: Drilling into wood, metal, brick, block, and concrete

Impact Driver (2953-20):

• Collet: 1/4 in hex (single-handed bit insertion)
• Length: 4.47 in (compact design)
• Motor: POWERSTATE™ Brushless Motor
• Speed: Up to 3,900 RPM
• Drive Control: 4-Mode DRIVE CONTROL™ for precision and power adjustment
• Performance: Fastest driving speeds under load with excellent control

System Features:

• Electronics: REDLINK PLUS™ Intelligence for optimized performance and protection
• Battery System: REDLITHIUM™ XC5.0 batteries for extended runtime
• Trigger Control: Smooth acceleration to prevent stripping or material damage
• Design: Compact, ergonomic build for reduced fatigue and better access

Includes

• (1) M18 FUEL™ 1/2" Hammer Drill (2904-20)
• (1) M18 FUEL™ 1/4" Impact Driver (2953-20)
• (2) REDLITHIUM™ XC5.0 Battery Packs
• (1) M18™ & M12™ Multi-Voltage Charger
• (1) Side Handle
• (2) Belt Clips
• (1) Blow Molded Case

Ideal For

• Contractors needing a versatile, high-performance drill and driver combo
• Drilling into wood, metal, and masonry with one kit
• Fast, efficient fastening and driving applications on the jobsite
• Working in tight spaces without sacrificing power
• Anyone who wants two tools that cover 90% of jobs—and do it fast**
