Milwaukee Router, 1.7HP 11A

Milwaukee Router, 1.7HP 11A

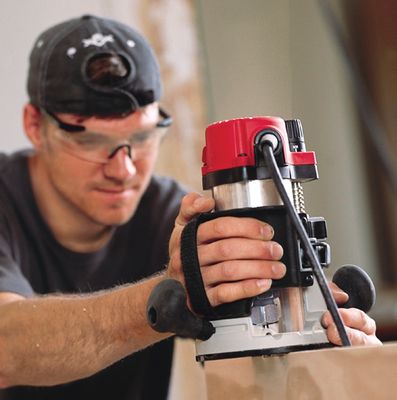

The Milwaukee 5615-20 BodyGrip® Router is a powerful, precision-driven woodworking tool built for control, comfort, and accuracy in demanding routing applications. With a 1.7 HP (11 Amp) motor spinning at 24,000 RPM, it delivers smooth, clean cuts while the BodyGrip® base design gives you unmatched handling and stability—because wrestling a router mid-cut is not part of the plan. Featuring a linear depth adjustment system with both coarse and microfine control, plus above-the-table adjustment capability, this router makes dialing in the perfect cut faster and far less frustrating.

Country of Origin
Varies by production batch

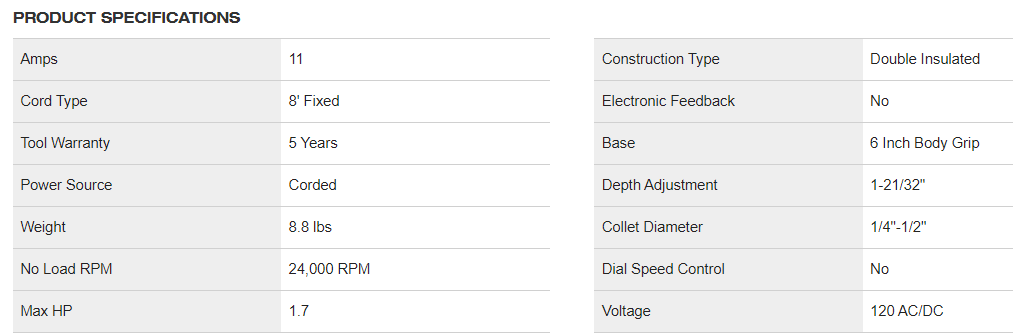

Key Features / Specifications

• Model / Part Number: 5615-20
• Brand / Series: Milwaukee BodyGrip®
• Product Type: Corded router (fixed base)
• Motor Power: 1.7 HP (11 Amp)
• No Load Speed: 24,000 RPM
• Power Source: Corded (120 AC/DC)
• Cord Length: 8 ft fixed cord
• Collet Capacity: 1/4" – 1/2"
• Depth Adjustment Range: Up to 1-21/32"
• Adjustment System: Linear depth adjustment with coarse and microfine control
• Above-Table Adjustment: Yes (via sub-base access for 3/8" hex extension)
• Base Design: 6" BodyGrip® base with over-molded rubber grip and hand strap
• Handle Configuration: Dual palm-grip side handles for added control
• Construction: Double insulated
• Electronic Feedback: No
• Dial Speed Control: No
• Weight: 8.8 lbs
• Max Horsepower Rating: 1.7 HP
• Warranty: 5-year limited warranty

Ideal For

• Woodworkers and carpenters needing precise routing and edge work
• Router table applications requiring easy above-the-table adjustments
• Projects demanding fine depth control and smooth, consistent cuts
• Users who want enhanced grip and stability during operation
• Anyone who prefers their cuts clean and controlled—not a “well, that escalated quickly” situation
