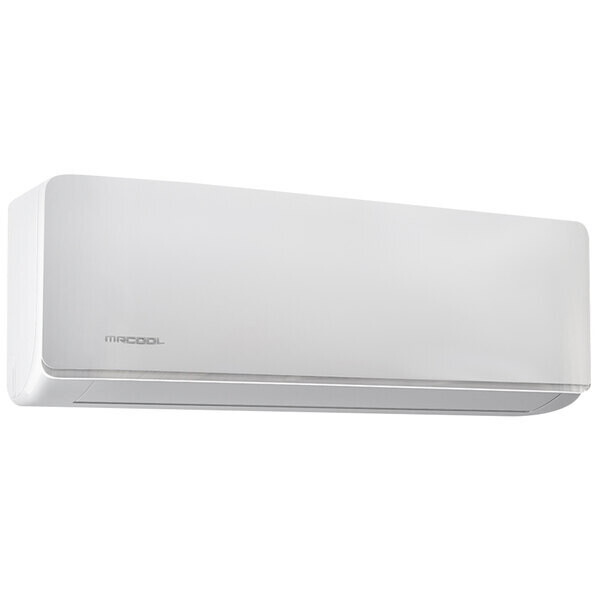

Mr Cool DIY 24K BTU Heat Pump Wall Mount Air Handler

BRAND NAME

MRCOOL

SERIES

DIY 4th Gen Wall Mount Air Handler

MODEL

DIY-36-HP-WMAH-230C25

GTIN

00810063868550

UPC

810063868550

UNIT TYPE

Mini Split

SHORT DESCRIPTION

MRCOOL® DIY 4th Gen 36k BTU Ductless Mini-Split Air Handler 208-230V/60Hz

LONG DESCRIPTION

The MRCOOL® 4th Generation DIY 36K BTU Ductless Wall Mounted Air Handler is the highest capacity air handler in the DIY series and has the ability to cover an area up to 1,500 sq. ft. Even with that level of performance, it can still deliver an impressive 18 SEER efficiency rating when connected to a MRCOOL® Condenser. It also features multiple operating modes which include HEAT, COOL, AUTO, DRY (dehumidify), and SLEEP. To take the functionality even further, this unit can also be operated by your Apple or Android smartphone with use of our convenient Smart HVAC app. This air handler has a compact design which makes it easier to mount to most interior walls when using the included mounting plate. This air handler is also designed to be installed using MRCOOL's patented Pre-Charged Quick Connect Line Set. The quick connectors allow the line set to be installed in a few simple steps with two wrenches. It comes precharged with R-410A refrigerant, so no vacuuming or charging of the system is required once installed. Let the MrCool 4th Generation DIY 36K BTU Ductless Wall Mounted Air Handler take care of the heating and cooling of your home.

FEATURE LIST

• SmartHVAC app: WIFI control - control your DIY anywhere with your Apple or Android smart device and an Internet connection
• Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
• Compatible with Amazon Alexa and Google Assistant
• Includes the new DIY Pro™ Cable, an added safety feature to protect the wiring from the outside elements

COOLING CAPACITY (BTU)

36000

HEATING CAPACITY (BTU)

36000

VOLTAGE (V)

208-230

PHASE

1

CYCLE

60

MOUNT TYPE

Wall

COLOR

White

COLOR FAMILY

White

MAX COVERAGE AREA

Up to 1500

REFRIGERANT TYPE

R-410A

DECIBEL RATING (DBA)

52/45/34

DECIBEL RATING LOW (DBA)

34

DECIBEL RATING HIGH (DBA)

52

INVERTER

Yes

MAX LINESET LENGTH (FT)

213.25

LIQUID LINE SIZE

3/8

SUCTION LINE SIZE

5/8

BLOWER MOTOR RPM

1200/950/750

FAN ONLY OPTION

Yes

QUIET MODE

Yes

AUTO COOL

Yes

WIFI COMPATIBILITY

Yes

APP COMPATIBILITY

Yes

WORKS WITH IOS

Yes

WORKS WITH ANDROID

Yes

REMOTE CONTROL INCLUDED

Yes

ENERGY STAR CERTIFIED

No

AHRI CERTIFIED

Yes

REGISTERED WARRANTY

Limited Lifetime Compressor

BASE WARRANTY

5-year Parts/7-year Compressor

BASE PARTS WARRANTY

5-year Parts

REGISTERED COMPRESSOR WARRANTY

Limited Lifetime Compressor

BASE COMPRESSOR WARRANTY

7-year Compressor

HAS BATTERIES

Yes

CONTAINS ELECTRONICS

Yes

CONTAINS CHEMICALS

Yes

CONTAINS AEROSOL

Yes

CONTAINS COMPRESSED GAS

Yes

PROPOSITION 65 WARNING

Yes

RESTRICTED STATES

GU;PR;VI

NET DEPTH (IN)

11.10

NET HEIGHT (IN)

14.25

NET WIDTH (IN)

49.57

NET WEIGHT (LBS)

47.84

GROSS DEPTH (IN)

21.26

GROSS HEIGHT (IN)

19.69

GROSS WIDTH (IN)

56.69

GROSS WEIGHT (LBS)

78
