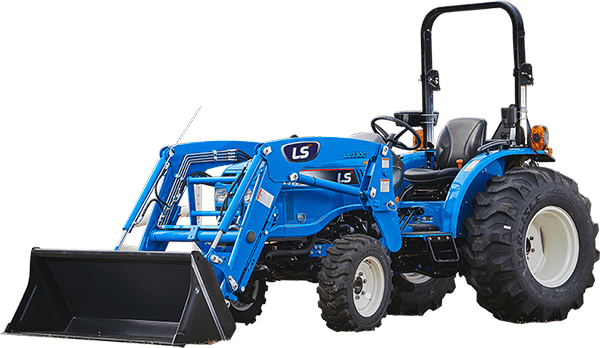

MT225E Tractor w/LL3300 Loader, Synchro Shuttle, Industrial Tires
SKU MT225E
$0.00
Call for price & availability
In stock
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
MT225E Tractor w/LL3300 Loader, Synchro Shuttle, Industrial Tires
Product Details
Brand: LS Tractor
Weight: 3 950.00 lbs
LS Tractor MT225E Tractor w/LL3300 Loader, Synchro Shuttle, Industrial Tires
Loader Lift Capacity....1,609 lbs.
Hitch Lift........................1,808 lbs.
Engine Horsepower.....24.6 hp
PTO Horsepower.........19.2 hp
Key Features
- 4WD (Front Wheel Mechanical Assist) – Go from 2WD to a 4WD with a simple move of a lever.
- Independent PTO – Easiest PTO to operate that can be turned on or off with a switch.
- Standard 12×12 Synchro Shuttle – Change gears without having to stop. 12 forward / 12 reverse gear transmission provides more operating speeds than others in its class for superior control, precision and safe operations for virtually any application.
- Side Mounted Main Gear Lever – Maximizes space and makes getting on and off tractor easier than straddle type like other brands.
- Standard Hydrostatic Gear Lever – Makes turning easier, improves control and reduces fatigue.
- Standard Foldable ROPS – Allows Storage in low clearance buildings or sheds.
- Your Choice Of Tires At No Additional Cost – Choose Ag, Industrial or Turf tires at no additional cost. *Subject to dealer inventory.
- 3-Point Hitch – Category 1 with a hitch lift capacity of 1,808 lbs. allows usage of a wide variety of implements.
- Ergonomically Designed 3-Point Hitch Controls – Easily accessible for maximum comfort and convenience with hydraulic position control.
- Standard Draw Bar – Increases the usefulness of the tractor without the additional optional cost.
- Large Fuel Tank – Provides long operation times between fill ups.
- Standard Rubber Mat – Reduces noise, vibration and prevents slipping.
- Flat Platform And Rubber Mat – Roomy, spacious and comfortable.
- Mitsubishi Tier 4 Engine – Fuel efficient engine delivers reliable performance. Rubber engine mounts reduce operator platform vibration. Standard preheat starting aid improves cold weather starting.
- Easy Open One-Piece Hood – Easy access for maintenance of this low emissions, fuel efficient engine. Standard pre-heat starting aid improves starting in cold weather.
- Modern Ergonomic Design – This compact is ergonomically designed.
- Deluxe Adjustable Seat With Seat Belt – Keeps you in a comfortable and safe position for maximum control.
Specifications
Engine
| Type | 3 Cylinder, liquid-cooled, Diesel, NA, IDI |
| Model (Tier 4) | Mitsubishi S3L2 |
| Engine HP (Gross) | 24.6 |
| PTO HP | 19.2 |
| Rated Speed (RPM) | 2,500 |
| Displacement (cu. in) | 80.4 |
| Fuel Tank Capacity (gal) | 7.4 |
| Alternator (V-A) | 12V – 50 Amps |
Drive Train
| Transmission Type | Synchro shuttle |
| No. of Speed | F12 x R12 |
| Brakes | Wet, Multi-disc |
| Steering | Hydrostatic Power Steering |
PTO
| Type | Independent |
| Rear, rpm | 540 (Standard) |
Hydraulic System
| Control System | Position |
| Implement pump (gpm) | 7.9 |
| Steering pump (gpm) | 4.6 |
| Total flow (gpm) | 12.5 |
| Category, 3 pt hitch | CAT 1 |
| Hitch Lift capacity, lbs (Hitch end) | 1,808 |
| Remote Valves | Option |
Dimension
| Overall length (Frame to Link, in.) | 118 |
| Wheelbase (in.) | 66 |
| Height to top (in.) | 88 |
Tire Size
| Ag Front / Rear | 7 – 14 / 11.2 – 24 |
| IND Front / Rear | 25 x 8.5 – 14 / 43 x 16 – 20 |
| Turf Front / Rear | 25 x 8.5 – 14 / 41 x 14 – 20 |
Weight
| Total weight without ballast (lbs.) | 2,434 |
Options
| Remote Valve- 1 pair (2 outlets) or 2 pair (4 outlets) |
| Detent Kit |
| Work Light |
| Horn |
| Front Weight – 44 lbs. x 4 |
