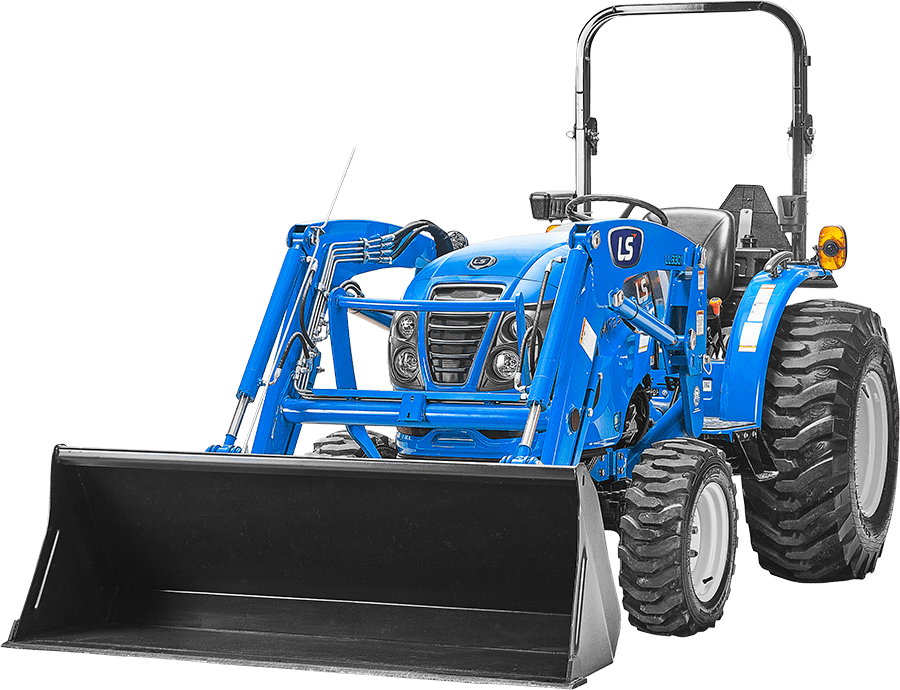

Name: MT230E Tractor with LL3301 Loader, Synchro Shuttle, Industrial Tires
Brand: LS Tractor
SKU: MT230E
Availability: InStock

MT230E Tractor with LL3301 Loader, Synchro Shuttle, Industrial Tires

Loader Lift Capacity......2,153 lbs.

Hitch Lift.........................1,808 lbs.

Engine Horsepower......35.0 hp

PTO Horsepower..........25.5 hp

Key Features

4WD (Front Wheel Mechanical Assist) – Go from 2WD to a 4WD with a simple move of a lever.
Independent PTO – Easiest PTO to operate that can be turned on or off with a switch.
Standard 12×12 Synchro Shuttle – Makes changing direction easier than competitive non-shuttle gear models. 12 forward / 12 reverse gear transmission provides more operating speeds than others in its class for superior control, precision and safe operations for virtually any application.
Side Mounted Main Gear – Maximizes space and makes getting on and off tractor easier than straddle type like other brands.
Standard Tilt & Power Steering – Makes turning easier, improves control and reduces fatigue.
Standard Foldable Rops – Allows Storage in low clearance buildings or sheds.
Your Choice Of Tires At No Additional Cost – Choose Ag, Industrial or Turf tires at no additional cost. *Subject to dealer inventory.
3-Point Hitch – Introducing foldable ROPS for storage allowance in low clearance buildings or sheds.
3-Point Hitch – Category 1 with a hitch lift capacity of 1,808 lbs. allows usage of a wide variety of implements.
Ergonomically Designed 3-Point Hitch – Easily accessible for maximum comfort and convenience with hydraulic position control.
Standard Draw Bar – Increases the usefulness of the tractor without the additional optional cost.
Large Fuel Tank – 7.4 gallon capacity provides long operation times between fill ups.
Standard Rubber Mat – Reduces noise, vibration and prevents slipping.
LS Tractor Tier 4 Engine – TGenerates more power with less noise, fuel consumption, vibration and emissions. Standard preheat starting aid helps starting in cold weather.
Easy Open One-Piece Hood – Easy access for maintenance of this low emissions, fuel efficient engine. Standard pre-heat starting aid improves starting in cold weather.
Modern Ergonomic Design – This compact is ergonomically designed.
Adjustable Seat With Seat Belt – Keeps you in a comfortable and safe position for maximum control.

Specifications

ENGINE

Type: 3-cylinder, indirect-injection, Water-cooled, Diesel, NA, CRDI
Model (Tier 4): L3C19-D3
Engine HP (Gross): 30
PTO HP: 25.5
Rated Speed (RPM): 2,600
Displacement (cu in.): 114.7
Fuel Tank Capacity (gal): 7.4
Alternator (V-A): 12V – 70

DRIVE TRAIN

Transmission: Synchro shuttle
No. of Speeds:F12 X R12
Brakes: Wet, Multi-Disc
Steering: Hydrostatic Power Steering

PTO

Type: Independent
Mid PTO: Standard (2,000 RPM)
Rear PTO:Standard (540 rpm)

HYDRAULIC SYSTEM

Implement pump (gpm): 8.2
Steering pump (gpm): 4.1
Total flow (gpm): 12.3
Category, 3 pt hitch: CAT 1
Hitch Lift capacity (lb.): 1,808
Lift control type: Manual Position

DIMENSIONS

Overall length (in.): 121
Wheelbase (in.): 69
Min. overall width with IND tires (in.): 54
Height to top of ROPS (in.): 88
Industrial - Front/Rear: 25 x 8.5 – 14 / 43 x 16 – 20
Turf - Front/Rear: 25 x 8.5 – 14 / 41 x 14 – 20

WEIGHT

Total weight without ballast (lbs.): 2,866 lbs

Options

Remote Valve- 1 pair (2 outlets) or 2 pair (4 outlets)

Detent Kit

Work Light

Horn

Front Weight – 44 lbs. x 4

Standard Factory Toolbox

Loader/Bucket Indicator Rod

Platform Step
