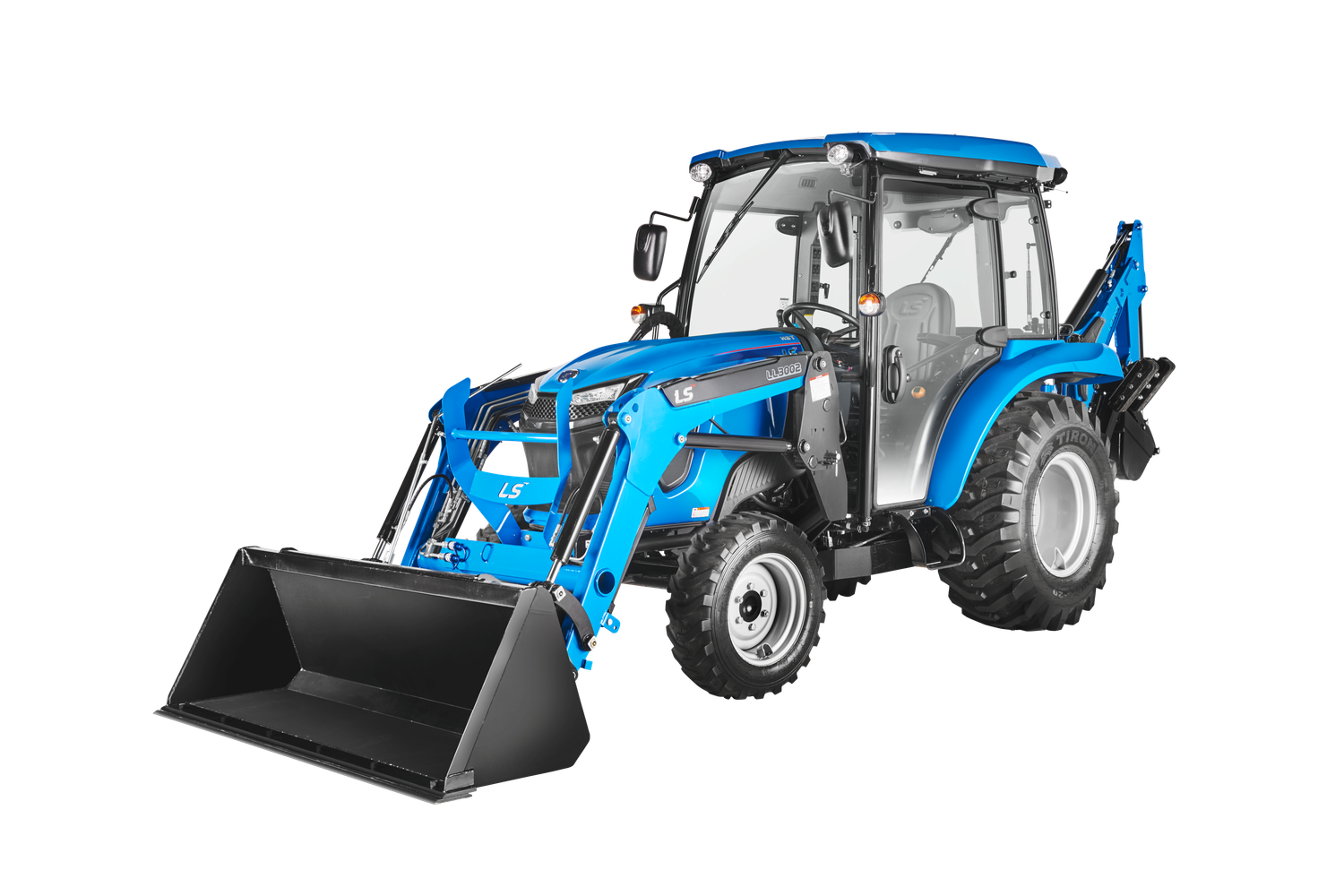

MT232HC Tractor with LL3002 Loader
SKU MT232HC
$0.00
Call for price & availability
In stock
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
MT232HC Tractor with LL3002 Loader
Product Details
Weight: 5 400.00 lbs
MT232HC Tractor with LL3002 Loader
More information on the MT232HC
Loader Lift Capacity......2,506 lbs.
Hitch Lift..........................1,808 lbs.
Engine Horsepower........31.7 hp
PTO Horsepower............26.2 hp
- Redesigned air conditioning and roof configuration, providing additional head space and increased forward visibility
- Much improved seat comfortability
- Cruise control & linked pedal functionalities (Engine RPM matches user input demand on F/R HST pedals)
- New hood design (LS Family look), Grill open space plus 20%
- LED head Lamp
- 1 Inch large tire size and four different tire options
- Larger lifting capacity, loader lifting capacity of New MT226E (LL3301/2) 1,965 lbs. New MT2E & MT2 (LL3303) 2,506lbs.
- Workability, 4-point mount structure as well as digging depth of 97.2” and bucket digging force of 3,663lbs.
- TF-LCD instrument panel providing various information like, regen time, oil change interval, etc.
- E/G RPM interlocking switch (STD). When working at low RPM, instantaneous RPM can be increased by simply manipulating the toggle switch to momentarily increase loader speed/lift.
Key Features
Specifications
Engine
| Type | 3 Cylinder Liquid-cooled Diesel, NA, CRDI |
| Model (Tier 4) | YANMAR |
| Engine HP (Gross) | 31.7 |
| PTO HP | 26.2 |
| Rated Speed (RPM) | 2,600 |
| Displacement (cu. in) | 100.2 |
| Fuel Tank Capacity (gal) | 11.4 |
| Alternator (V-A) | 12V – 55 Amps |
Drive Train
| Transmission Type | HST |
| No. of Speed | 3 Ranges |
| Brakes | Wet, Multi-disc |
| Steering | Hydrostatic Power Steering |
PTO
| Type | Independent |
| Rear, rpm | 540 (Standard) |
Hydraulic System
| Control System | Position |
| Implement pump (gpm) | 6.7 |
| Steering pump (gpm) | 5.0 |
| Total flow (gpm) | 11.7 |
| Category, 3 pt hitch | CAT I |
| Hitch Lift capacity, lbs (Hitch end) | 1,808 |
| Remote Valves | 1 Pair |
Dimension
| Overall length (Frame to Link, in.) | 125 |
| Overall width with tires (in.) | 66 |
| Wheelbase (in.) | 69 |
| Height to top (in.) | 90 |
Tire Size
| Ag Front / Rear | 7 – 14 / 11.2 – 24 |
| IND Front / Rear | 27X8.50-15 / 43X16.00-20 |
| VT Front / Rear | 27X8.50-15 / 43X16.00-20 |
| Turf Front / Rear | 25X8.50-14 / 41X14.00-20 |
Weight
| Total weight without ballast (lbs.) | 3,721 |
Options
Standard
| Remote valve 1st |
| Loader valve 3pair |
| E/G RPM Interlocking Switch(Joystick) |
| Cruise Control & Linked Pedal |
| Lowerlink – Telescopic |
| Stabilizer – Check Link |
| External Lift Control Lever |
| Drawbar |
| Head Lamp(LED) |
| TF LCD Instrument Panel |
| 12V Outlet |
| Engine Kill Switch(Rear Fender) |
| Rubber Mat |
| Seat with Suspension & Armrest |
| LH/RH Side Step |
| Tool Box |
Options
| 3rd Function Extension Pipe |
| Remote valve 2nd |
| Mid PTO |
| Clevis Drawbar |
| Rear Work Lamp |
| 7-pole |
| Horn |
| Fuel Cap(Locking Type) |
| Block Heater |
