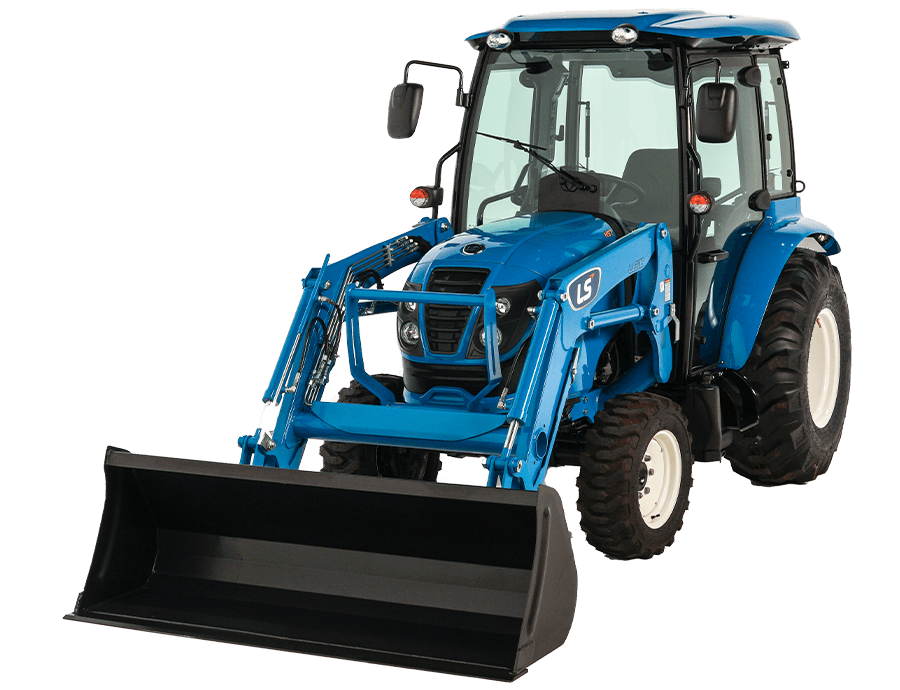

MT235HEC Tractor w/Cab & LL3301 Loader, Hydrostat & R4 Tires
SKU MT235HEC
$0.00
Call for price & availability
In stock
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
MT235HEC Tractor w/Cab & LL3301 Loader, Hydrostat & R4 Tires
Product Details
Brand: LS Tractor
Weight: 4 950.00 lbs
MT235HEC Tractor w/Cab & LL3301 Loader, Hydrostat & R4 Tires
More information on the MT235HEC
Loader Lift Capacity....2,153 lbs.
Hitch Lift.......................1,808 lbs.
Engine Horsepower....35.0 hp
PTO Horsepower........28.0 hp
- Left And Right Cab Doors – Premium Seat Providing Access To Either Side Of The Cab
- 3 Range Hydrostatic Transmission – Provides Comfort And Excellent Controllability Of Tractor Movement
- 3 Standard Dual Mirrors – Provide Added Visibility
- 3 Standard Drawbar – Provides Value And Enables Trailering etc.
- 3 Ground Level Fueling – Provides Easy Access.
- Standard Grille Guard With Loader – Provides Added Protection
- High-Capacity Loader – With High Lift Height And Standard Skid Steer Coupler
- Standard Integrated Joystick – Mid Mount Valve, Providing Deluxe Fit And Finish
- Electronic PTO – For Ease Of Use
Key Features
Specifications
Engine
| Type | Vertical Water-Cooled 4Cycle Diesel Engine |
| Model (Tier 4) | L3C19-T |
| Engine HP (Gross) | 35 |
| PTO HP | 28 |
| Rated Speed (RPM) | 2,600 |
| Displacement (cu. in) | 114.7 |
| Fuel Tank Capacity (gal) | 12.4 |
| Alternator (V-A) | 12V – 70 Amps |
Drive Train
| Transmission Type | HST |
| No. of Speed | 3 Ranges (HST) |
| Brakes | Wet, Multi-disc |
| Steering | Hydrostatic Power Steering |
PTO
| Type | Independent |
| Rear, rpm | 540 (Standard) |
| Mid, rpm | 2,000 (Option) |
Hydraulic System
| Control System | Position/Draft |
| Implement pump (gpm) | 8.2 |
| Steering pump (gpm) | 5.5 |
| Total flow (gpm) | 13.7 |
| Category, 3 pt hitch | CAT I |
| Hitch Lift capacity, lbs (Hitch end) | 1,808 |
| Remote Valves | Option |
Dimension
| Overall length (Frame to Link, in.) | 128.3 |
| Overall width with tires (in.) | 69 |
| Wheelbase (in.) | 62 |
| Height to top (in.) | 86.6 |
Tire Size
| Ag Front / Rear | 7 – 14 / 11.2 – 24 |
| IND Front / Rear | 27X8.50-14 / 43X16.00-20 |
| Turf Front / Rear | 25X8.50-14 / 41X14.00-20 |
Weight
| Total weight without ballast (lbs.) | 3,655 |
Options
Options
| Telescopic Link Arms |
| Side Step – RH |
| 7 Pole Connector |
| Horn |
| Sun Screen |
| Interior Rear View Mirror |
| External Position Lever |
| Beacon Lamp |
| Work Light |
| Audio Assy – without Bluetooth |
| Audio Assy – Bluetooth |
| Rear Wiper |
| Mid PTO |
| Remote Valve – 2 Pair (1 STD. 1 Detent) |
