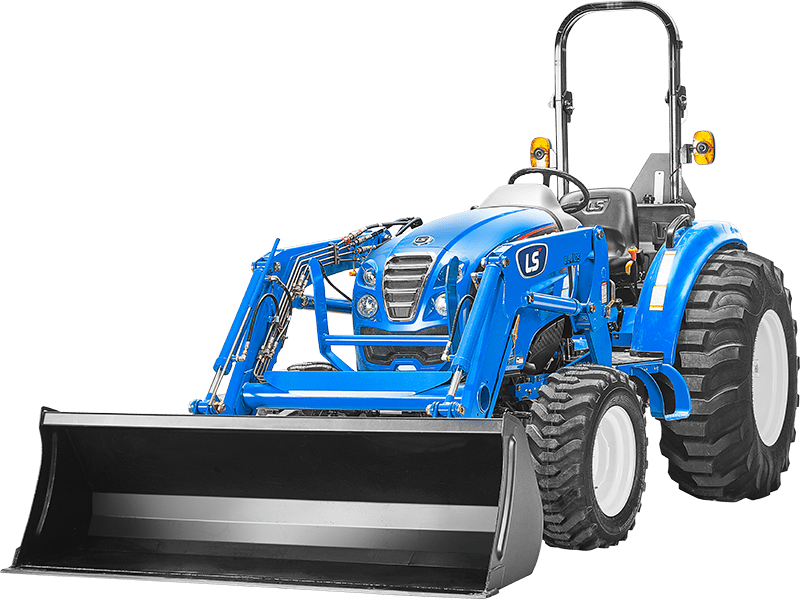

MT335H Tractor w/LL3116 Loader, Hydrostat Transmission, Industrial Tires
SKU MT335H
$0.00
Call for price & availability
In stock
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
MT335H Tractor w/LL3116 Loader, Hydrostat Transmission, Industrial Tires
Product Details
Brand: LS Tractor
Weight: 4 185.00 lbs
LS Tractor MT335H Tractor w/LL3116 Loader, Hydrostat Transmission, Industrial Tires
Loader Lift Capacity.......2,185 lbs.
Hitch Lift..........................1,808 lbs.
Engine Horsepower.......35.0 hp
PTO Horsepower...........28.0 hp
Key Features
- 4WD (Front Wheel Mechanical Assist) – Go from 2WD to a 4WD with a simple move of a lever.
- Independent PTO – Easiest PTO to operate that can be turned on or off with a switch.
- Standard 12×12 Synchro Shuttle – Change gears without having to stop. 12 forward / 12 reverse gear transmission provides more operating speeds than others in its class for superior control, precision and safe operations for virtually any application.
- Side Mounted Main Gear Lever – Maximizes space and makes getting on and off tractor easier than straddle type like other brands.
- Standard 2 Sets Of Remote Valves With Detent – Adds functionality and improves ease of use by allowing attachment of hydraulically controlled implements without the high, additional costs like others in its class to add the remotes as options.
- Extendable Lower Links – Allows easier attachment of a wide variety of Category 1 implements with a 1,808 lb lift capacity.
- Standard Tilt & Power Steering – Makes turning easier, improves control and reduces fatigue.
- Fender Mounted Joystick For Front End Loader – Easily accessible for maximum comfort and convenience.
- Standard Foldable ROPS – Allows Storage in low clearance buildings or sheds.
- Your Choice Of Tires At No Additional Cost – Choose Ag, Industrial or Turf tires at no additional cost. *Subject to dealer inventory.
- 3-Point Hitch – Category 1 with a hitch lift capacity of 1,808 lbs. allows usage of a wide variety of implements.
- Standard Hydraulic Position And Draft Control – Easily accessible for maximum comfort and convenience.
- Standard Rear Work Light – Adjustable light to improve visibility where you need it.
- Standard Draw Bar – Increases the usefulness of the tractor without the additional optional cost.
- 7 Pin Connector – Provides electrical Power for implements when needed.
- Large Fuel Tank – 10.6 gallon capacity provides long operation times between fill ups.
- Flat Platform And Rubber Mat – Roomy, spacious and comfortable.
- LS CRDI Tier 4 Engine – Generates more power with less noise, fuel consumption, vibration and emissions. Standard preheat starting aid helps starting in cold weather.
- Easy Open One-Piece Hood – Easy access for maintenance of this low emissions, fuel efficient engine. Standard pre-heat starting aid improves starting in cold weather.
- Modern Ergonomic Design – This compact is ergonomically designed.
- Deluxe Adjustable Seat With Arm Rests And Retractable Seat Belt – Keeps you in a comfortable and safe position for maximum control.
Specifications
Engine
| Type | 3-Cylinder, CRDI, Water-cooled Turbo Diesel |
| Model (Tier 4) | L3C19-T |
| Engine HP (Gross) | 35 |
| PTO HP | 28.0 |
| Rated Speed (RPM) | 2,600 |
| Displacement (cu. in) | 114.7 |
| Fuel Tank Capacity (gal) | 10.6 |
| Alternator (V-A) | 12V – 85 Amps |
Drive Train
| Transmission Type | Synchro Shuttle/HST |
| No. of Speed | 12F / 12R |
| Brakes | Wet, Multi-disc |
| Steering | Hydrostatic Power Steering |
PTO
| Type | Independent |
| Rear, rpm | 540 (Standard) |
| Mid PTO, rpm | 2000 (Field Option) |
Hydraulic System
| Control System | Position |
| Implement pump (gpm) | 8.2 |
| Steering pump (gpm) | 4.1 / 5.5 (HST) |
| Total flow (gpm) | 12.3 / 13.7 (HST) |
| Category, 3 pt hitch | CAT I |
| Hitch Lift capacity, lbs (Hitch end) | 1,808 |
| Remote Valves | 2 Pairs (Front), 2 Pairs (Remote) (Detent, Standard) |
Dimension
| Overall length (Frame to Link, in.) | 124.3 |
| Wheelbase (in.) | 66 |
| Height to top (in.) | 93 |
Tire Size
| Ag Front / Rear | 9.5-16 / 14.9-24 |
| IND Front / Rear | 25 x 8.5 – 14 / 43 x 16 – 20 |
| Turf Front / Rear | 25 x 8.5 – 14/ 41 x 14 – 20 |
Weight
| Total weight without ballast (lbs.) | 3,285 |
Options
| Mid PTO |
| Beacon Lamp Kit |
| Deluxe Stereo System with CD Player, USB |
| Room Mirror |
| Rear Wiper |
| Sun Screen |
