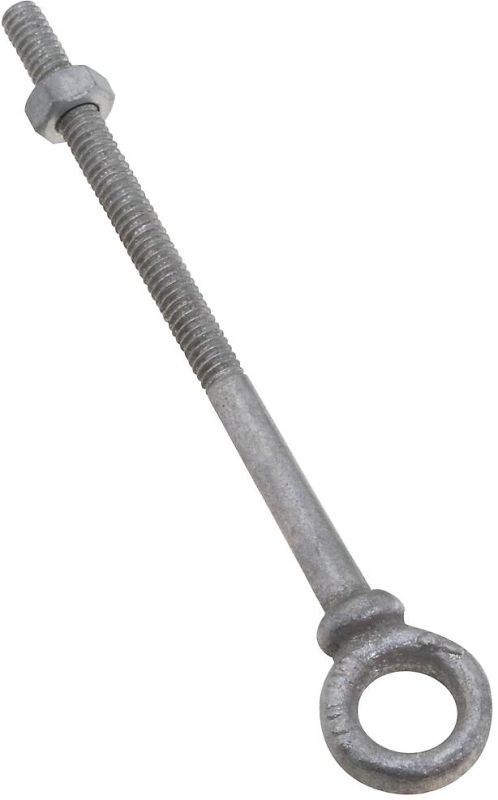

National N245-084 Galv Forged Eyebolt, 1/4"X4" 500Lb WLL

National N245-084 Galv Forged Eyebolt, 1/4"X4" 500Lb WLL

General-purpose eye bolt used where high-strength is required. Ideal for marine and agricultural applications. Has shoulder so bolt can be tightened in place. Forged steel for great strength. Galvanized for corrosion-resistance. With hex nut.

Description du français:

BLON IL +ECROU 1/4X4 PO GALV

Descripción español:

PERNO DE OJO C/TUERCA GALVANIZADO 1/4 X 10,16 CM

Product Details

Eye Diameter:

1/2 in ID x 7/8 in OD

Finish:

Galvanized

Includes:

Hex Nuts

Material:

Steel

Overall Length:

5 in

Shank Diameter:

1/4 in

Shank Length:

4 in

Thread Length:

3-7/8 in

Thread Size:

1/4-20

Thread Type:

Coarse

T P I/ Pitch:

20

Working Load Limit:

500 lb

Features

Bar code label is color-coded to identify wire size

Pintle punched for 5/16 in (1/2 in size) or 3/8 in (5/8 in size) bolts

Strength (SWL) is clearly defined on label

When subjected to 312 hr of salt fog spray testing, zinc-plated hardware showed severe corrosion while hardware with WeatherGuard protection withstood these harsh conditions with very little deterioration
