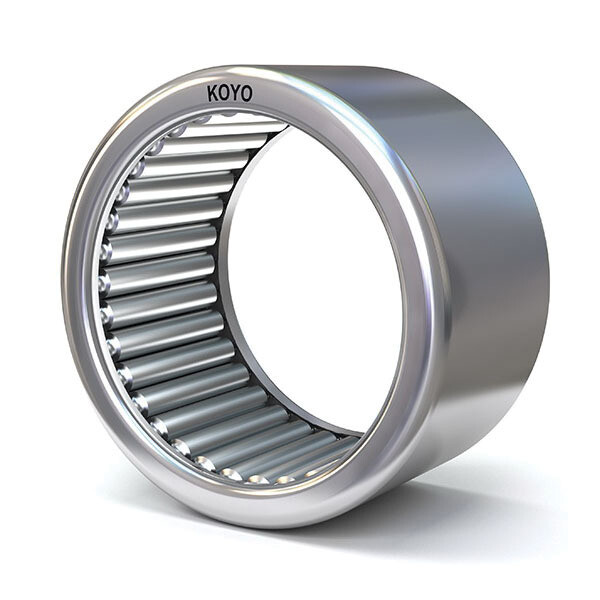

Needle Bearing, 1.000"X1.312"X0.750"

Needle Bearing, 1.000"X1.312"X0.750"

The BH1612 Needle Bearing is a heavy series needle roller and cage assembly designed to deliver high load capacity in a compact footprint. With no inner or outer rings, this bearing uses the mating shaft and housing as raceways, allowing for maximum load-carrying capability within minimal space. Built as a full complement, mechanically retained needle roller assembly, it’s ideal for applications where strength and space efficiency are equally important.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: BH1612
• Bearing Type: Needle roller and cage assembly
• Series: BH Series – Heavy Series
• Inside Diameter (ID): 1.000"
• Outside Diameter (OD): 1.312"
• Width: 0.750"
• Design: Full complement of mechanically-retained needle rollers
• Construction: No inner or outer ring (shaft and housing act as raceways)
• Closure Type: Unsealed
• Load Capacity: High load capability within a low cross-section design
• Lubrication Option: “OH” designation indicates oil hole version (if applicable)

Ideal For

• Applications requiring high radial load capacity in tight spaces
• Equipment using the shaft and housing as bearing raceways
• Agricultural, industrial, and power transmission machinery
• Installations where a compact, heavy-series needle bearing is required
