Name: Oil Seal, 1.500x2.311x0.500
Brand: Dichtomatik
SKU: 14979
Price: 26.69 USD
Availability: InStock

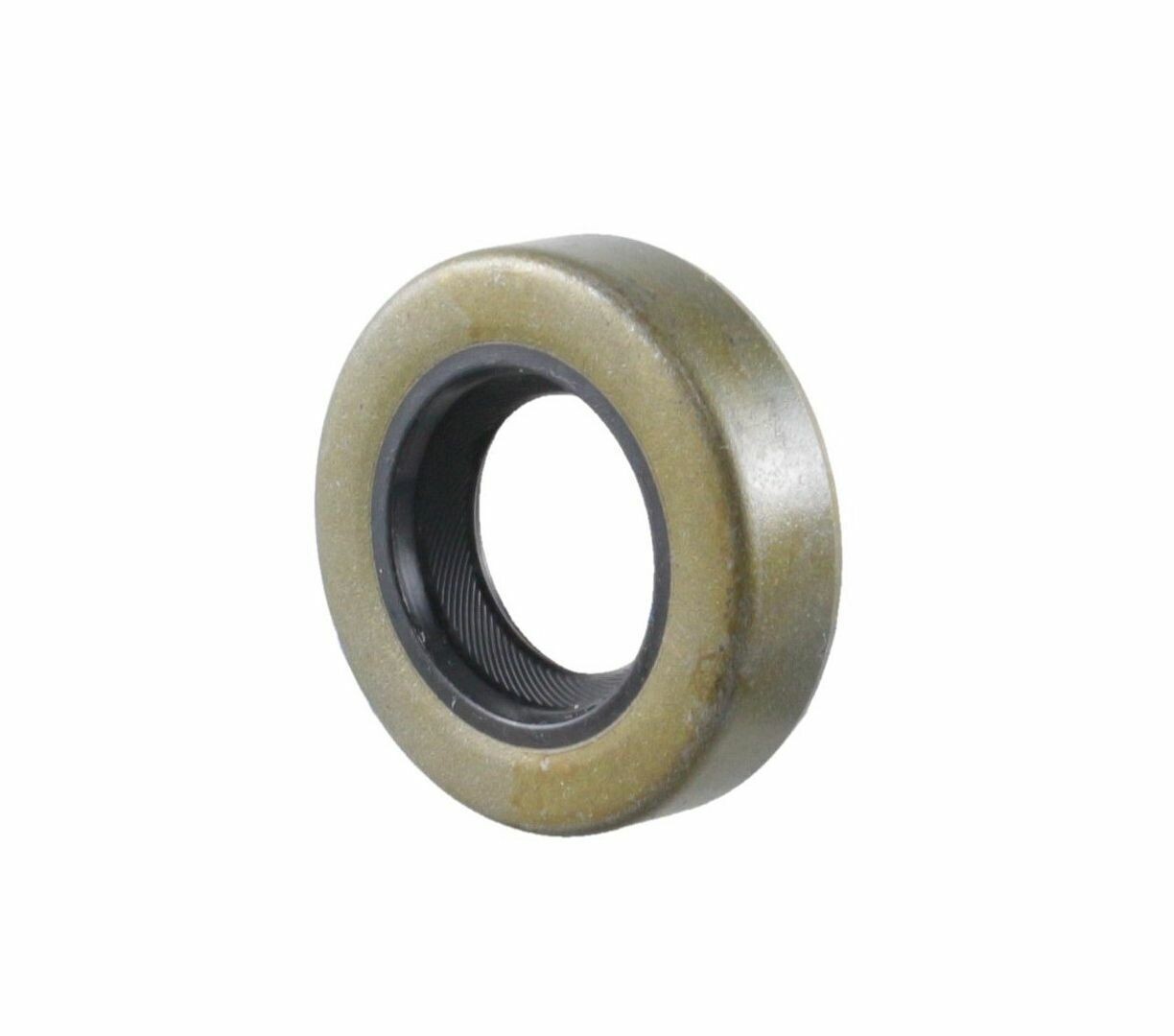

Oil Seal, 1.500 x 2.311 x 0.500

Radial shaft seal with metal case, SKF Wave lip and auxiliary, contacting lip, for oil or grease

Radial shaft seals are used between rotating and stationary machine components, or between components in relative motion. CRWA5 seals are designed with a metal case, an SKF WAVE lip made of elastomer with higher pumping rate to reduce heat generation. The seal also has a garter spring and a non-contacting auxiliary lip optimizes the sealing against the shaft.

For oil or grease
With garter spring
WAVE lip creates higher pumping rate
WAVE lip has less friction between shaft and lip
WAVE lip has a lower temperature at the contact point

Dimensions

Shaft diameter	1.5 in
Housing bore diameter	2.311 in
Seal width	0.5 in

Performance

Limiting speed	3 379 r/min
Maximum operating temperature	392 °F
Minimum operating temperature	-13 °F
Permissible circumferential speed	1 326.772 ft/min
Rotational speed	3 379 r/min

Properties

Design	CRWA5
Auxiliary lip	Yes
Sealing lip material	Fluoro rubber (FKM)
Type of outside diameter	Metal-cased with sealant coating on the outside diameter
Unit system	Inch

Oil Seal, 1.500x2.311x0.500
